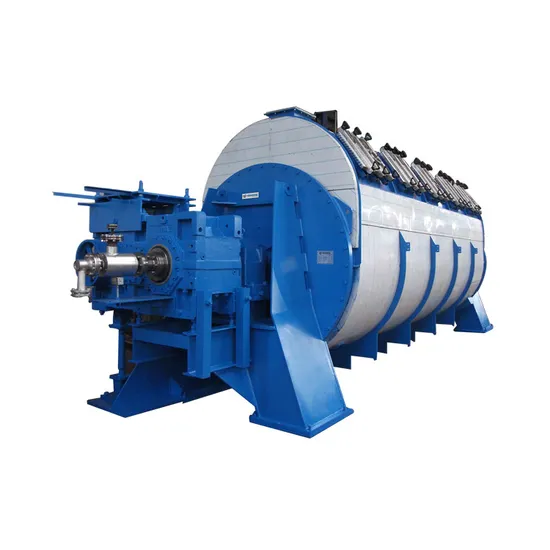

High Performance Meat and Bone Meal Rendering Plant for Poultry and Livestock Feed Meal

Product Description

Large scale High utilization recyclable poultry animal waste rendering plant
We are committed to the animal waste rendering plant, and are in the leading position in the field of organic waste resource recycling technology. With the crystallization of advanced environmental and ecological science and technology in the world, advanced animals innocuous treatment equipment has been developed, and a complete set of innocuous treatment has been manufactured.
Equipment classification:
Steam type drying treatment machine: inlet the high temperature and high pressure steam into the jacket, use this as the heating method, high efficiency and energy-saving.
Oilfired drying treatment machine: Use the kerosene as heating medium, heating the transfer oil in the jacket, this type is clean, environmental and convenient, boiler not needed.
Electric heating type drying treatment machine: Use electric heating as heating method, heating the transfer oil in the jacket, this type is high automation and convenient, boiler not needed.
Process introduce
1, raw materials (dead animals) comes into play after disinfection, into the automatic bin, closed continuous conveying to the crusher, the negative pressure drainage the stench gas.

2, raw material crushing: raw material after broken into 20-30 mm block, the hermetic screw conveyor machineswere transported into the system after the sewage cleaning equipment, there are negative pressure drainage into the machine, do not produce secondary pollution.

3, high temperature system: the dry process system, and the total consumption of time is short, 120 min.Processing center temperature 140 ºC or higher pressure acuity 0.35 MPa (absolute pressure), the holding 30 to 40 minutes, discharge way to discharge under pressure to automatically send material to squeeze on the buffer tank, to press for the use of material automatically.

4, press: the sterilization curing materials are squeezing degreasing, separation of oilwater mixture, reduce the solid content of moisture and fat content, oil can be used as biological diesel oil and chemical oil raw material, the protein secondary water into the dryer dry recovery.

5, dryer, dry slag press cake, make the moisture content of 10% or less, so that the packing storage, can be used as organic fertilizer.

6, cooling: materials for drying after cooling.

7, exhaust: machine, dryer to discharge waste gas, through indirect condensation, drug spray filter processing standards.
Technical Specifications

Technical specification	Unit	Type
		BC5000	BC6500	BC8500	BC10000	BC16000
Dimension A	mm	5450	7100	7425	8400	9000
B	mm	2070	2070	2305	2035	2500
C	mm	1600	1600	1775	1775	2100
Design pressure Jacket and rotor	Bar	10	10	10	10	10
Design pressure cooker	Bar	5	5	5	5	5
Heating surface	m2	27	35	41	49	63
Power	Kw	37	45	55	49	63
Shipping weight	Kg	12000	13500	19000	22000	36000

Cooker type	Capaicty(kg/batch)
	Mixed meat offal, bones	Raw blood	Wet feathers	Mixed poultry offal
XBC5000	3000	2000	2700	3000
XBC6500	4000	2500	3500	4000
XBC8500	5000	3400	4600	5000
XBC10000	6000	4000	5400	6000
XBC16000	10000	7000	9000	10000

Advantages
The animal waste rendering plant is to handle all the dead animal bodies through effective sterilization, high temperature and high pressure by way of high temperature drying.
The process will dry the object, and then grind the object by the shredder so as to achieve the waste recycling utilization efficiency to complete.
After services
1.The Complete Animal Rendering Plant's repairing service after saled will be available within one year.It also will be maintained for lifetime.
2.If there any thing wrong of the product,you can contact with us.
3.All above,we will meet our commitment during normal operation.
Our afterservice theory:Pursuing the efficiency of solving problem,solving the problem thoroughly,taking up a full responsibility.
Raw materials
Packing and shipping
Our company supports sea and land transportation.
We will provide you with high quality service.
Company profile
Our company is a well-known supplier of complete sets of harmless treatment at home and abroad. The company has the manufacturing qualification of pressure (Certificate No.TS2237474-2020). It has more than 20 new patents, 2 invention patents and strong technical force.
We are committed to the animal waste rendering plant, and are in the leading position in the field of organic waste resource recycling technology. With the crystallization of advanced environmental and ecological science and technology in the world,advanced animals innocuous treatment equipment has been developed, and a complete set of innocuous treatment has been manufactured.
FAQ
Q1. Are you a manufacturer or a trading company?
A: We are a professional manufacturer of food frying machine.
We have own factory and R&D department. Having CE & ISO certificate..
Q2. What is your payment terms?
A: Strongly recommend to use ******'s Trade Assurance.
T/T :30% prepayment,70% before delivery.
Q3. Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q4. What about the lead time?
A: Regular products:20-30 working days
Customizable products:30-40 working days.
Q5. What after-services do you provide?
A: Send engineers for installation, trial running and training workers at customer's site.
Handling the problems occurred during use. Supply spare and wearing parts on discount.
Help customers to solve any other problems .
