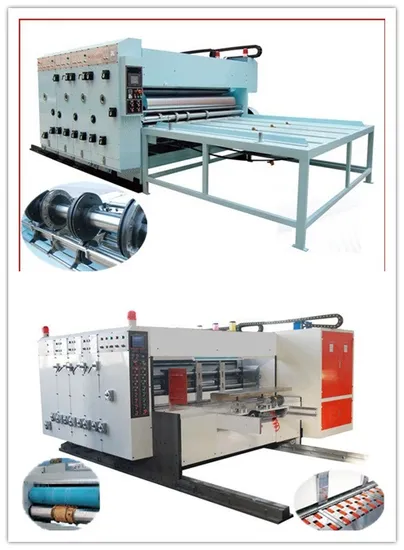

Flexo Printer Slotter Die-Cutter for Corrugated Carton Making Machine
| US$8,000.00-400,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
YKS/YKM
Anilox Roller
Metal or Ceramic Anilox Roller
Dryer
UV& IR
Type
Automatic Carton Making Machine
Embossing Structure
Rotary Letterpress
Structure
Unit Type
Application
Pre Printed Carton
Automatic Grade
Automatic
Printing Speed
200m/min
Electricity Voltage
Made to Customer Request
Certification
Ce
Driven Type
Electric
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
Transport Package
Plastic Film and Wooden Box
Specification
ISO
Trademark
Yush
Origin
China
HS Code
8441
Production Capacity
10 Set Per Month
Product Description
Flexo Printer Slotter Die-cutter1) This machine can do 1~5 colors printing, edge-cutting, slotting, corner-cutting, punching, die-cutting, creasing etc. At one process.
2) The electric appliances of a whole machine adopt the excellent product by the domestic produces.
3) Adopt cross slider transmission. Adopt spouting style cycle lubricate.
4) All rollers are chrome plated. Adopt high grade rubber roller anilox roller, can print elegant pattern.
5) Adopt pneumatic uplift plate, pneumatic lock close, electric equal ink, pneumatic supply ink, electric economy separate and retune, separate and retune pneumatic brakes, photo electricity recorded, etc.
6) Phase adjustment adopts planet gear structure, digital input.
| Model | YKM | YKM-Q |
Max Sheet size | 900*1200mm~1600*3000mm | 900*1200mm~1600*3000mm |
Min Sheet Size | 300*400~500*600mm | 300*400~500*600mm |
Max Printing Area | 900*1000mm~1600*2800mm | 900*1000mm~1600*2800mm |
| Min Slotting Distance | 120*120*120*120mm | 160*160*160*160mm |
Max Slot Depth | 225~400mm | 225~400mm |
| Max Die-cutting Size | 850*1000mm~1550*2800mm | 850*1000mm~1550*2800mm |
| Max Stacking Height | 1500mm | 1500mm |
Design Speed | 60pcs/min | 100~200pcs/min |
