Upright Drilling Machine Z5032 High Precision Vertical Drilling Machine

Upright Drilling Machine Z5032 High Precision Vertical Drilling Machine

US$22,800.00-50,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
Z5032
Structure
Radial Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Normal Precision
Certification
CE, ISO 9001
Condition
New
Product Name
Upright Drilling Machine Z5032 High Precision Vert
Transport Package
Plywood Case
Trademark
DECHANG
Origin
China
HS Code
8459290000

Product Description

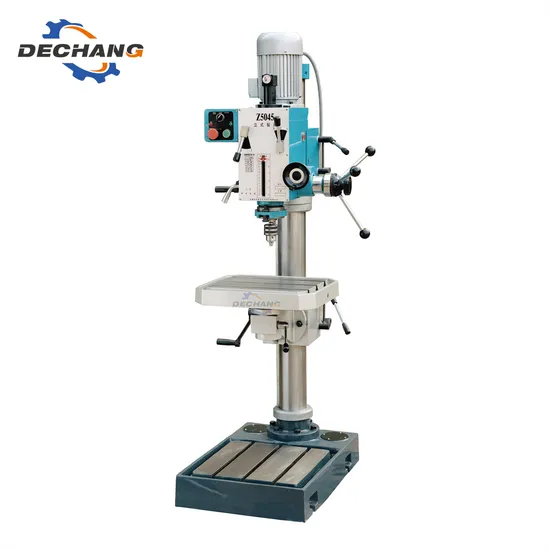

Upright Drilling Machine Z5032 High Precision Vertical Drilling Machine
Product Description
Main technical Specifications:
Specifications Z5032 Z5040 Z5045
Max.drilling dia. 32mm 40mm 45mm
Spindle taper M.T.3 or R8 M.T.4 M.T.4
Spindle travel 130mm 130mm 130mm
spindle speed steps 6 6 6
spindle speed range 50Hz 80-1250 r.p.m 80-1250 r.p.m 80-1250 r.p.m
60Hz 95-1500 r.p.m 95-1500 r.p.m 95-1500 r.p.m
Min.distance from spindle axis to
column
283mm 283mm 283mm
Max.distance from spindle nose to
worktable
725mm 725mm 725mm
Max.distance from spindle nose to
stand table
1125mm 1125mm 1125mm
Max travel of headstock 250mm 250mm 250mm
Swivel angle of headstock
(horizontal/perpendicular)
360°/±90° 360°/±90° 360°/±90°
Max travel of worktable bracket 600mm 600mm 600mm
Worktable size of avaliablity 380×300mm 380×300mm 380×300mm
Swivel angle of table horizontally 360° 360° 360°
Table leaned ±45° ±45° ±45°
Size of stand worktable of avaliability 417×416mm 417×416mm 417×416mm
Motor Power 0.75KW(1HP) 1.1KW(1.5HP) 1.5KW(2HP)
speed of motor 1400 r.p.m 1400 r.p.m 1400 r.p.m
Net weight/Gross weight 430kg/480kg 432kg/482kg 435kg/485kg
Packing size 1850×750×1000
mm
1850×750×1000
mm
1850×750×1000
mm


Detailed Photos


Company Profile
What We Do?
Our main products are :
CNC Lathe Machine, CNC machining center, CNC Milling Machine, CNC Turning Center, Lathe machine, Milling machines,,Drilling machine, Sawing machine, Grinding machine and other metal-working machines and accessories.
Our Machines Application Fields:
1.Aviation industry: 5-axis machining centers, horizontal and gantry machining centers, precision CNC lathes, etc. can be used to process parts such as aircraft wings, fuselages, empennages and engines
2.Railway locomotive manufacturing industry: CNC lathes, vertical and horizontal machining centers, and five-axis machining centers can process high-speed rail locomotive bodies, axles, wheels and other parts
3.Mold manufacturing: high-speed CNC milling machine, high-precision CNC machining center, precision grinding machine can process automotive panel molds, die-casting molds, forming extrusion molds, etc.
4.Power equipment manufacturing industry: For power generation equipment, heavy CNC gantry milling machines, large floor milling machines, large CNC lathes,
In addition, our machine tool products can also be used in weapon manufacturing, electronic information equipment manufacturing, metallurgical equipment manufacturing.

WHY CHOOSE US?
QUALITY COMMITMENT
Company is committed to bring efficient, high precision and stability to all users by insisting on providing our customers with high quality machines.Company machines passed ISO, CE Certificates.
SERVICE SUPPORT
The warranty period is general 13 months after B/L date. During the warranty period, if the parts are damaged because of itself quality problems,except human factors and improper operation, we will provide free replacement parts. Meanwhile, the machine should be under normal operation according to Operation Manual.
Company also provide provide online technical support, voice and video guidance.
Our Facotry
MANUFACTURER CAPABILITY
The company has purchased high-precision and high-efficiency advanced equipment from well-known domestic and foreign brands, and the company's machining and production technology level has been continuously improved, resulting in a continuous increase in production capacity. Company provide first-class machines to to meet the needs of domestic and foreign customers.
R&D CENTER
Company collected first-rate professionals in domestic machine tool trade and established long-term technical cooperative relations with other famous machine manufactures. Meanwhile, companmy pays more attention to introducing advanced foreign technology, and makes great efforts to achieve technical renovation and develop market oriented highly sophisticated products.
Company provide comprehensive cnc machines and manual machines to global customers.
Whether you are an end user, a dealer, or a machining factory, you can send your technical requirements, specifications, drawings, and we will provide the most and we will provide the most suitable machine or a comprehensive processing line solution.

After Sales Service
SERVICE SUPPORT
From the moment you become part of the DECHANG, we are fully dedicated to guiding you, answering your questions and supporting your business. You can rest assured that with DECHANG, you always have a trusted partner to guide you every step of the way. See how our Technical Support services can answer your questions and help you solve your most pressing issues.

1.Warranty

The warranty period is general 13 months after B/L date. During the warranty period, if the parts are damaged because of itself quality problems,except human factors and improper operation, we will provide free replacement parts. Meanwhile, the machine should be under normal operation according to Operation Manual.
2.Quick Response

Our top-notch, expert technical support specialists are there for you seven days a week, 24 hours a day, so you can always count on us to provide help when you need it most.
3.Online Technical Support

On the Whatsapp or Wechat, our technician and sales will deliver solution by taking video and words instructions.
4.Overseas Commissioning and Installation
This is a paid service. If an engineer is required for overseas installation and debugging, please contact the salesperson to obtain the cost

FAQ
1: Where is your company A: Our company is located in Tengzhou City, Shandong Province.2: What about your warranty?A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free3: How do you offer after-sale service?A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems4. What is your standard package? A: Our package is export standard plywood case with pallet.5: What's the Payment Terms? A: T/T, 30% initial payment when order, 70% balance payment before shipment; 6: What's the MOQ? A: 1 set.
