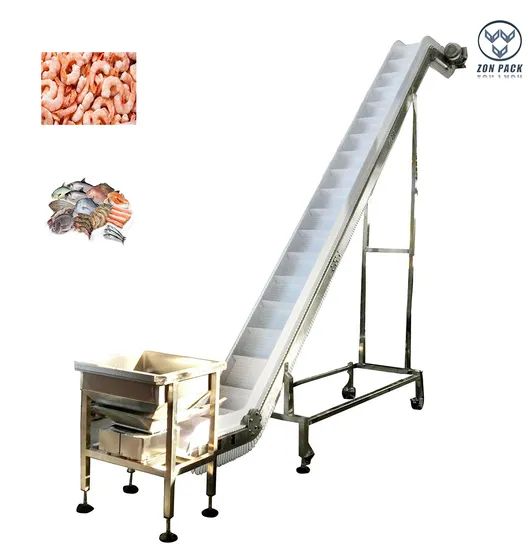

Customized Food Grade Stainless Steel PU Belt Inclined Conveyor for Sea Food
| US$3,600.00-4,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZH-CFP-PU
Structure
Inclining Conveyor
Material
Stainless Steel
Material Feature
Fire Resistant
Application
Grain Transport
Condition
New
Rack Material
304ss
Motor Power
1.5kw
Storage Hopper Size
650*650mm
Horizontal Size
5200mm
Outlet Height
3100mm/3200mm
Weight
400kg
Package Size
3100*720*1300mm
Transport Package
Film Pack Inside, Wooden Case Outside.
Trademark
ZON PACK
Origin
Zhejiang, China
HS Code
8428330000
Production Capacity
100 Sets Per Month
Packaging & Delivery
Package Size
310.00cm * 72.00cm * 113.00cm
Package Gross Weight
400.000kg
Product Description
1.ApplicationThe conveyor is applicable for vertical lifting of granule material such as corn,jerry, snack, candy , nuts, plastic and chemical product, small hardware ,vegetable ,fruit and so on. For this machine, the bucket is driven by the chains to lift.
| Techinical Feature | 1.Speed is controlled by frequency converter , easy to control and more reliable. | |||
| 2.Easy to install and maintain | ||||
| Options | Belt or chain plate | |||
| Stock Bin : 150L/200L/300L | ||||
| Machine Frame:304SS or Mildsteel Frame | ||||
| Model | ZH-CF | |||
| Convey Height | 1800-4500 mm | |||
| Belt Width | 220-400 mm | |||
| Bucket Material | White PP (Food grade) | |||
| Vibrator Hopper Size | 650L×650W mm | |||
| Power supply | 220V/50HZ or 60HZ Single Phase, 0.75KW | |||
| Packing Dimension | 6000L×900W×1000H mm | |||
| Gross Weight | 650kg | |||
Our storage hopper and conveyor Height
can be customize.
650*650mm storage hopper: 72L
800*800mm storage hopper: 112L
1200*1200mm storage hopper : 342L 2.Motor and dischaerge port
Powder support:220V/50HZ or 60HZ Single Phase,
0.75KW 3.Electric box
VFD control speed.And easy to control.Voltage: 380V/ 50HZ 4.Belt material
It can be uesd PU or Link Joint.PU is very easy to clean, you can use the water clean it directly. Link joint can be used for material which have water, it can filter the extra water.
