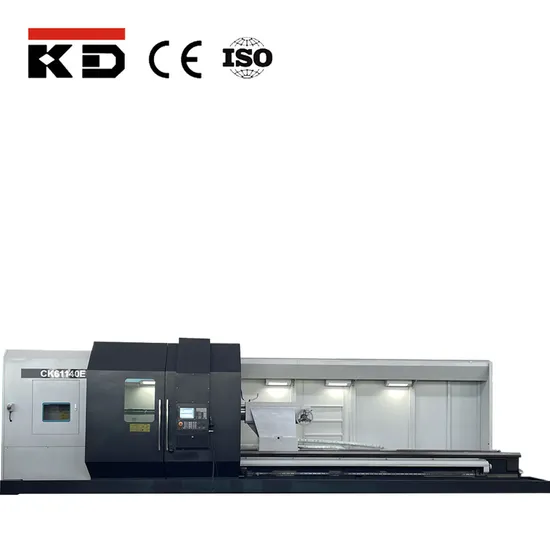

Heavy Duty Flat Bed CNC Lathe (CK61140E/3000)
| US$54,123.00-96,402.00 | 1 SET (MOQ) |
Basic Info.
Model NO.
CK61140E/3000
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Max Swing Over Bed
1400-1600mm
Spindle Bore
130mm
Spindle Speed
2.5-250r/Min
Width of Bed
970mm
Mian Motor
22/26kw
Transport Package
Wooden Pallets(Ht)
Specification
CE, ISO9001, SGS
Trademark
KD
Origin
Zhejiang China
HS Code
8458110000
Production Capacity
180 Sets/ Year
Product Description
FEATURES AT A GLANCEPRODUCT SPECIFICATIONS
| MODELS | CK61140E | CK61160E |
| CAPACITY | ||
| Max.swing over bed | Ф1400 mm | Ф1600 mm |
| Max.swing over carriage | Ф1000 mm | Ф1190 mm |
| Width of bed | 970 mm | |
| Max. length of workpiece | 1.5/ 2/ 3/ 4/ 5/ 6/ 8/ 10/11 /12 m | |
| Max.turning length | 1.3/ 1.8/ 2.8/ 3.8/ 4.8/ 5.8/ 7.8/ 9.8/ 10.8/ 11.8 m | |
| Max.weight between centers | 6000 kg | |
| SPINDLE | ||
| Spindle nose | A2-15 | |
| Spindle bore | Ф130 mm | |
| Spindle tapper | Metric Ф140 1:20 | |
| Steps of spindle speed(manual) | 2 steps (manual) | |
| Range of spindle speed | 2.5~270 rpm | |
| FEED | ||
| Rapid feed for axis Z | 8 m/min | |
| Rapid feed for axis X | 5 m/min | |
| TRAVEL | ||
| Max travel of Z aixs | 1.5/2/3/4/5/6/8/10 m | |
| Max travel of X aixs | 820 mm | 900 mm |
| TOOL POST | ||
| Tool post stations | 4 | |
| Tool cross section | 50×50 mm | |
| TAILSTOCK | ||
| Tailstock sleeve outer dia. | Ф160 mm | |
| Tailstock sleeve taper bore | Metric Ф80 | |
| Tailstock sleeve travel | 300 mm | |
| OTHERS | ||
| Min.input | 0.001 mm | |
| Main motor power | 22 kW ( Optional 26 kW) | |
| Coolant pump power | 370 w | |
| Chuck diameter | Ф1250 mm (4-jaw chuck) | Ф1400 mm (4-jaw chuck) |
