Powerful Cutting Performance Vtc Series CNC Vertical Lathe

Product Description

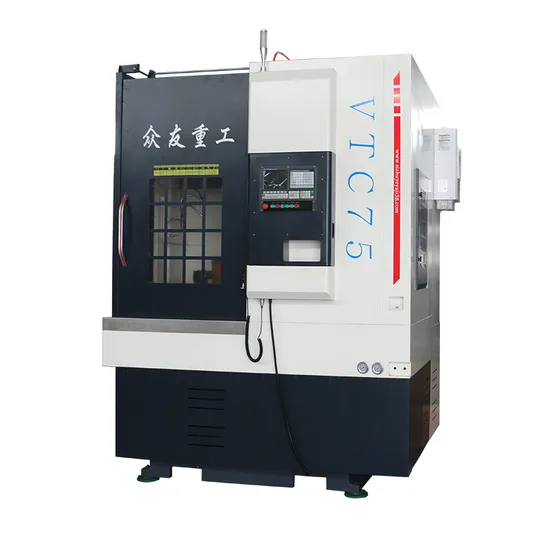

powerful cutting performance VTC series CNC vertical lathe
Product Description
The VTC series CNC vertical lathes are based on high rigidity structure combined with precision linear rails, equipped with hydraulic positioning turret and powerful spindle with high torque output, so that this series of machine tools can provide you with the most powerful cutting performance with superior quality.
Based on years of experience in the manufacture, sales and combined with users' feedback, we have carried out a variety of user-friendly designs.
The tool rest of the machine tool adopts horizontal or vertical multi-station CNC tool rest, which has short tool change time and greatly improves work efficiency. The 8-station tool turret makes the process simpler.
The spindle drive is divided into a servo motor that directly drives the spindle through a timing belt to achieve greater torque output.
Main Features:
1.The base, column and sliding seat are all made of high-grade gray cast iron, and have been tempered to ensure that the machine tool has high strength and long-term accuracy and stability.
2. X and Z axes adopt precision linear guide ways.Ball screws are pre-extended. It makes the machine with high rigidity and accuracy.
3. 8-station hydraulic turret is reliable,high efficient and good performance.
4. The spindle is of high rigidity construction to provide variable speed to realize constant linear speed cutting and heavy cutting.
5.The machine tool spindle adopts wide-area and high-torque servo motor drive, which can be used for low-speed and high-torque,
heavy-duty cutting, and high-speed cutting. At the same time meet the needs of roughing and finishing
6. Automatic centralized lubrication with full sufficiency and reliability.

Product Parameters

Specification	Unit	VT45	VT65	VT75
Maximum rotating diameter of machine tool	mm	560	650	560
Maximum cutting diameter	mm	450	600	450
spindle speed range	rpm	3000	100~1000	50~1500
cutting feed speed	mm/min	0.1~1000	0.1~1000	0.1~1000
tool test vertical movement length	mm	500	600	700
tool test horizontal movement length	mm	400	450	700
rapid traverse speed vertically	mm/min	16000	16000	16000
rapid traverse speed horizontally	mm/min	16000	16000	16000
diameter of hyaraulichuck	mm	500	500	630
main motor power	kw	11/15	18.5	22
positioning accuracy	mm	±0.008	±0.008	±0.008
repeated positioning accuracy	mm	±0.005	±0.005	±0.005
Cross weight	kg	5500	8000	9500
machine tool overall dimension	mm	1700×1880×2500	2000×1950×3000	2450×1900×3200

Application


CNC Vertical Lathe is suitable for internal and extemal turning,internal and extermal tapering,circula arc,facing,slotting,thread,drilling,reaming,boring,chamfering of big diameter axle parts and disc type parts. The machine has awidely use,high efficiency,good stability,easy to operate.It can achieve the high-precision processing of single or batch processing.

Packaging & Shipping


Packaging Details
1. Packing method: Internal plastic moisture-proof anti-rust packaging, External wooden packaging, Exclusive container transport.
2. Mode of transport: by sea or by land.

Our Advantages


Our services are divided into pre-sale, sales, after-sale three parts.

Pre-sale:to provide detailed advice, the program recommended to the factory inspection, as far as possible to meet your questions and needs.
Sales:can support samples, support diversified payment methods, the solid forklift tire press machine production process
transparent,standardized and quickly stocking.
After-sales:support diversification guidance, training, voice and video images, and even solid forklift tire press machine overseas site installation, on-site training, home maintenance, continuous return visit customers concerned about the use

Company Profile

Certifications
Our company has passed the ISO quality management system certification,Products are exported to more than 50 countries and regions including Europe, America, Asia, Oceania and Africa.Has a number of product patents and honor certificates,is a continuous innovation machinery and equipment company.
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you .
2: How can I get a quotation?
A: Pls tell us the machine you need, including quantity, raw materials and other requirements.
3: Where is your factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5:How can i trust your company?
A:We have professional design, we can provide you suitable suggestion and lowest price
1. Assessed by third party, national patents and CE, ISO for all equipment, .
