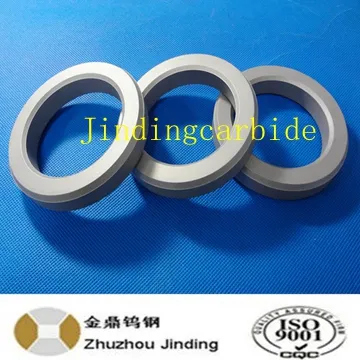

Tungsten Cemented Carbide Roll Mill Roller for Industry

Product Description

[ Product Name ]
tungsten Cemented Carbide Roll Mill Roller for Industry
[Quick Futures]
1. High wear resistance.
2. 5 Tons sell a month.
3. Various types available.
4. ISO9001:2008,CQC.
5.18 tons output a month

[Product Show]
1.Introduction
Tungsten Carbide Rolls/Rings is widely used as seal faces with resistant-wearing, high fractural strength, high thermalconductivity, small heat expansion co-efficient. It is the best material to resist heat and fracture in all hard face materials.
We offer various material grades includes standard K05,K10, K20, K30, K40,also our special research like JD05B,JD10B,JD20B,JD30B,etc.Using good carbide is like using thin kerf saw blades. The differences are not dramatic but they are important. Good carbide will reduce breakage and give better quality cuts overall. There are several types of Carbide, including advanced grades. Our R&D Team can supply you more information about these advanced grades and tungsten carbide grades when you make the inquiry.

2.More pictures

3.Similar tungsten carbide roller:
[Packing]
In common:

Firstly use inner boxes,then to outer boxes or do as customer requested.

[Shipping Methods]
Shipment methods:By air or sea,DHL,UPS,FEDEX,TNT or as your resquest.
[Company Brief Introduction]
We(Zhuzhou Jinding) established in 2004 with a total 3500 square meter factory with a year output 200 Tons.We are the professional manufacturer in high-tech plant of Hunan Province.Also have 10 years OEM experiece in China.High quality is our life to do win-win business.Welcome to your coming!
[How Carbide Powder is Pressed]
Tungsten carbide shapes are made from a powder which is typically tungsten, carbon, cobalt and wax to bind it all together.

Carbide shapes are made three ways; pressing in a die, "whittling" a shape from a green piece of carbide or grinding a shape from a finished piece of carbide.
This is a carbide press. At top is a ram. The powder is poured into the press cavity (the die) then the ram comes down and compresses the powder. Once the powder is fully pressed the top ram withdraws. There is a second ram at the bottom of the cavity that comes up and pushes the part out of the cavity.
The pressed parts are then presintered. In this step the wax is melted out. This leaves a piece of "green carbide" or "green state carbide". Since the wax has been melted out it is just powder pressed together. It is actually weaker than side walk chalk. It can be machined easily in this state although great care is required. It is at this step that carbide parts get chipped edges. Some parts, such as saw tips, are made in large and very large batches. They are moved by conveyors and often poured into trays for final sintering. If this not done carefully one square edge impinging on another can cause chipped edges in the carbide parts. By contrast you can use a .410 shotgun to fire fully sintered saw tips at a concrete block wall without damaging the saw tips.
The final step is sintering in which the carbon is forced into a relaxed tungsten matrix creating tungsten carbide grains and those grains are enveloped in a binder or matrix of cobalt of similar.

During the final sintering the parts shrink dramatically. Exactly how much shrinkage will occur is difficult to predict exactly. Parts are usually designed to be produced a bit oversize.
[Competitive Advantage]
10 years manufacture experience in tungsten carbide

Implement strict quality testing and control procedure to make superior quality. (ISO9001)

Fexible payment terms(L/C, T/T, western union,money gram, etc.)

Reply your inquiry within 10 hours

We are professional factory, so our price is lower than others

Professional sales person


Perfect Oral English communication service

[Any question or requirement , please contact us,we are glad to help you]

Tel: 0086 0731 22660738
Website: jdcarbide.en.made-in-china.com

Material	Virgin
Size	Any size we can do
Applicaition	Widely for oil,mechenical,etc.
Sells quantity a month	5 Tons
Advantage	Free sample,best price,fast sent
