Stone Polishing Machine 8 12 16 Head Large Plate Edging Machine Marble Slab Polisher Line Polishing Building Material Machinefob Reference Price: Get Latest Pri

Product Description

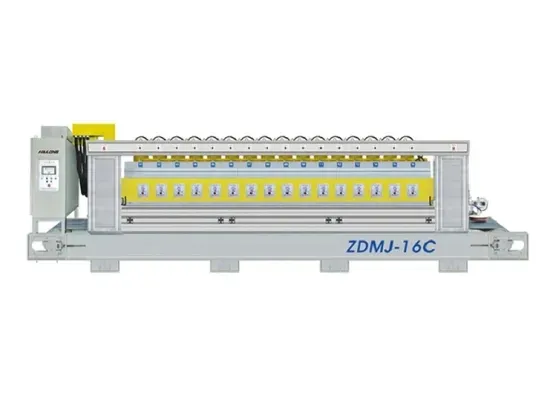

Granite Slab Polisher
Advantages for slab polishing machine of stone machine:
China factory stone line cutting shaping stone polishing machine Stone Machine kota stone polishing machine is reasonably designed with merits, simple structure, stable performance, easy operation and maintenance. It can greatly improve productivity by finishing the double straight edge polishing work at one time.Stone polishing machine is also a high cost performance automatic marble slabs polishing machine with various merits such as space-saving, friendly human-machine interface and high intelligence and high productivity.
ApplicationMulti Head Automatic Stone Polishing Polishing Machine adopts high quality steel, where the pneumatic parts adopt AirTAC products from Taiwan to reserve a compact structure and steady performance so as to improve the processing efficiency. The machine is specially designed for polishing granite slabs. Allocation the flexibility polishing heads for granite. The whole machine is featured with high polishing efficiency, and greatly reduced abrasive consumption. The polishing machine uses PLC system. The intelligent control is available for operator with LCD touch screen to interact with machine. Model can be selected if customer requires.
The machine specially fits for grinding and polish the slabs and strips of granite and other natural and engineered stones, moving on a conveyor belt, using a series of grinding heads or resin abrasive disc.
--Perfect surface levelling
--Electric and electronic components in international standards.
--"Fine-honed" surface finish to reduce the number of the following level-ling units,and consequently, the dressing costs.
We can do the machines according to the client's requirements, like the number of heads, processing width and length.
This Model of machine has adopted international advanced technology to be suitable for the automative polishing of marble and granite slabs. It has brand-new design, reasonable structure, stable performance, high efficiency, friendly interface and high degree of intelligence. It is also with merits of small covering space, low consumption rate of polishing material and power, high yield, and etc. This equipment is especially good for the polish of valuable slabs.
Note: This machine has multiple grinding heads which can be selected different number by customer, it can be made 8 heads, 12 heads, 16 heads, 20 heads, and 24 heads according to customer's request.
Technical Parameter

Product Description

Model	ZDMJ2200B-8	ZDMJ2200B-12	ZDMJ2200B-16
Working width	2200 mm	2200 mm	2200 mm
Working thickness	10-60 mm	10-60 mm	10-60 mm
Belt speedy	0~3.5 mm/min	0~3.5 mm/min	0~3.5 mm/min
Polisher heads	8 pcs	12 pcs	16 pcs
Water consumption	22 m³/h	22 m³/h	22 m³/h
Air consumption	24 m³/h	24 m³/h	24 m³/h
Mian motor	15kw×8ps	15kw×12ps	15kw×16ps
Total power	≈140kw	≈240kw	≈260 kw
Overall dimensions	6500×3000×2600 mm	9000×3000×2600 mm	11500×3000×2600 mm
Total weight	≈16000 kg	≈20000 kg	≈24000 kg

Our factory not only have all kinds of size of bridge saw cutting machine of stone machine and stone machine spare parts ,but also our company sell all kinds of stone carving machines, laser machines, bridge cutting machines, slab polishing machine , edge grinding machines, row pitch machines and rope machines and laser machine and water jet machines and so on !!!
Packaging & Shipping
marble and granite slab polishing machine we have width 600mm-2200mm, the width 600-1250mm ,the slab polishing Machine Loading by normal container,heads motor user 7.5 or 9 kw.
width 1200-2200mm, the slabe polishing machines loading by 1x40FR container, heads motor used 11 or 15kw.

Our factory not only have all kinds of size of bridge saw cutting machine of stone machine and stone machine spare parts ,but also our company sell all kinds of stone carving machines, laser machines, bridge cutting machines, slab polishing machine , edge grinding machines, row pitch machines and rope machines and laser machine and water jet machines and so on !!!
