Energy Saving Japanese Style Monorail Lift Electric Wire Rope Hoist

Product Description

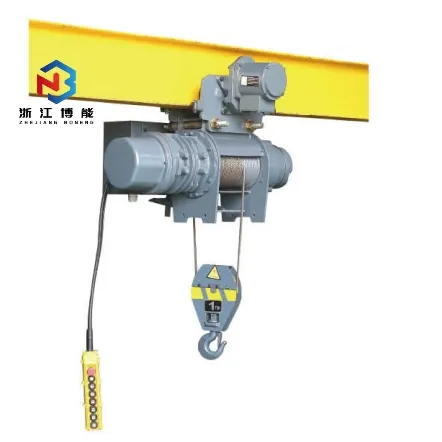

Energy Saving Japanese Style Monorail Lift Electric Wire Rope Hoist
Product Description
Japanese monorail electric wire rope crane is a common industrial lifting equipment, usually used for handling heavy objects. Its design is inspired by Japan and embodies exquisite craftsmanship and engineering technology. The appearance of this crane is usually simple and elegant, and the structure is sturdy and durable, suitable for various industrial environments.
Japanese monorail electric wire rope crane usually consists of a motor, a lifting mechanism and a control system. They connect the lifting mechanism and the motor through a wire rope, and the motor provides power to lift and lower the heavy objects. The lifting mechanism is usually compact in design and flexible in rotation, which can achieve precise lifting and handling operations.
This crane is suitable for the handling and lifting of various heavy objects, such as mechanical equipment, auto parts, building materials, etc. They are often used in manufacturing, warehousing and logistics, improving production efficiency and reducing the risk of manual handling. The structural design of the Japanese monorail electric wire rope crane enables it to achieve horizontal and vertical movement in a limited space, and flexibility and efficiency are well balanced.
Japanese monorail electric wire rope crane is a reliable and efficient lifting equipment that provides important support and convenience for industrial production. Its superb technology and excellent performance make it one of the preferred lifting solutions for many industrial enterprises.
Product Parameters

JAPANESE STYLE MONORAIL ELECTRIC WIRE ROPE HOIST
Product Name	Japanese Style Monorail Electric Wire Rope Hoist
Keywords	Wire Rope Hoist
Weight (KG)	80 kg or Customized
Material	Metal
Load Capacity	0.5-32t or Customized
Power Supply	3 Phase 380V-690v 50HZ/60HZ
Hoist Lifting Speed	5/0.8m/min
Lifting height	6-30m or Customized
Product Type	Monorail Wire Rope Hoist
Control Method	Pendant +Remote(Customized)
Rope Winding Mode	1/2,2/4,1/4
Hook	Forged
Current(A)	1.25-41.7
Travel Speed(m/min)	20/30.Customized
MOQ	1 Set

Detailed Photos
Steel Wire Rope
Bearing significant, Solid and durable.End sintering, anti-rotary andanti-breakable
Hoisting Limit Switch
Cutting off the power toprotect hoist and hook when slider hit the limit switch.
Electric Box
Easy to install, Long servicelife, Valid protection of hoist
Advanced Reducer
Three-stage reduction withhelical gear, Heat treatment to ensure the reliability.
Copper Motor
Stronger power,heating low cooling fast, running powerful
Company Profile
FAQ
Q1: Are you a factory or a trader?
A1: We are a factory.
Q2: Can you provide customized services?
A2: Yes! We can customize various cranes according to your requirements. You need to tell us what you need.
Q3: What industries do you serve?
A3: We serve many industries, including machinery, metallurgy, railways, etc. High-quality products in different fields will play an important role.
Q4: What's the information should I provide when inquiring?
A4: a. What's the lifting material?
b. How much is the maximum lifting weight of the hoist?
c. Have you installed the rails? Do you need us to supply the rails? How long is it?
d. Where is the working environment?
Q5: How do you ensure quality?
A5: We will constantly check the quality during manufacturing and strictly test the equipment before shipment. We will also send you a quality certificate.
Q6. How can we install the crane?
A6: Our senior engineer can be on your side to do the installation guide service and training.
