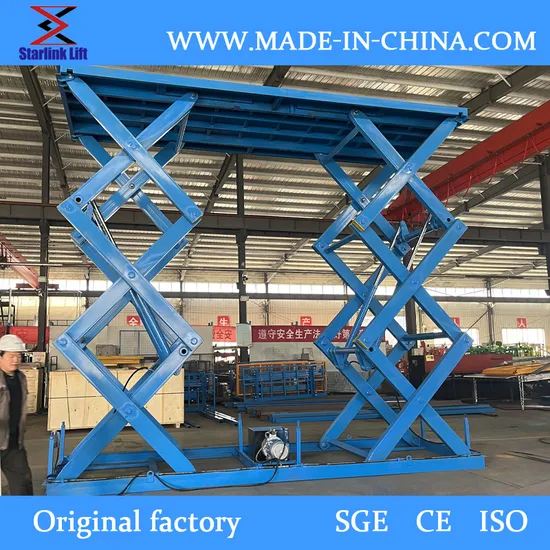

CE Customized Hydraulic Scissor Lift Table High Quality Stationary Scissor Lift Electric Hydraulic Scissor Lifting Equipment Factory Fixed Scissor Lift

Product Description

Product Description
Fixed hydraulic lift is a fixed transportation equipment that lifts goods from one height to another. Because of its large weight, volume and safety, fixed hydraulic lift is a special form of high altitude lifting platform, which should be classified as lifting machinery. As a special hydraulic lifting platform product for transporting goods between the building floors, the main function is to carry various kinds of goods between working floors; at present, fixed hydraulic lifts are mostly used for the lifting of vehicles in the three-dimensional garage and the basement garage.
Detailed Photos
Due to the influence of the height of the building or the working shelf, the size and weight of the objects carried and other requirements, there are many uncertain factors in its model. When the models shown in the list are not suitable for the use requirements, the lifting, bearing capacity and platform area of the lifting platform can be combined according to the actual use environment and operation requirements, so as to achieve the ideal use effect.
Thickened Scissors
Anti-pinch design, selected high-quality steel to improve equipment stability
Emergency Descent
manual adjustment to prevent unexpected situations and protect cargo safety
Hydraulic Cylinder
The hydraulic cylinder has low working pressure, extending the service life of hydraulic components.
Chain
The weight of the chain is 10 times the rated weight. With this heavy-duty functionality and long-lasting life, it will provide top-notch safety.
Hydraulic Pump Station
The hydraulic pump station has the following characteristics: compact structure, light weight, high efficiency, high working pressure, reliable performance, and no leakage.

High-quality Steel
Selected high-strength manganese steel, the rigidity is 17% higher than ordinary steel. It has high structural stability and large bearing capacity.
Product Parameters

Model	Load(kg)	CH(mm)	Stroke(mm)	L x W(mm)	Voltage(v)
SLGJ2.5-3	2500	500	3000	2500*5500	220/380/415
SLGJ3-3	3000	500	3000	2500*5500	220/380/415
SLGJ3.5-3	3500	600	3000	2500*5500	220/380/415
SLGJ4-3	4000	600	3000	2500*5500	220/380/415
SLGJ4.5-3	4500	600	3000	2500*5500	220/380/415
SLGJ5-3	5000	600	3000	2500*5500	220/380/415
SLGJ3-4.5	3000	700	4500	2500*5500	220/380/415
SLGJ3.5-4.5	3500	800	4500	2500*5500	220/380/415
SLGJ4-4.5	4000	800	4500	2500*5500	220/380/415
SLGJ4.5-4.5	4500	800	4500	2500*5500	220/380/415
SLGJ5-4.5	5000	800	4500	2500*5500	220/380/415
SLGJ3-6	3000	800	6000	2500*5500	220/380/415
SLGJ4-6	4000	800	6000	2500*5500	220/380/415
Customizable solutions can be provided according to the special requirements

Installation example
Company Profile
Shandong Starlink Heavy Industry Machinery Co., Ltd. is located in Jinan City, Shandong Province, China, is a professional production and development of various lifting platform enterprises, the main products are Hydraulic Scissors lift, Trailer boom lift, Home Lift and so on. Over the years, our company to "quality first, customer first, integrity-based" as the business philosophy, has become one of the leading domestic hydraulic equipment manufacturers.
All products produced by our company are in line with national and industry standards, and has passed ISO9001-2000 quality system certification, product quality and performance are recognized, products not only sell well in China, but also exported to more than 50 countries in the world, mainly distributed in Europe, the United States, the Middle East, Southeast Asia and South Africa. All products an be designed and manufactured according to your requirements, welcome to sample customized.
