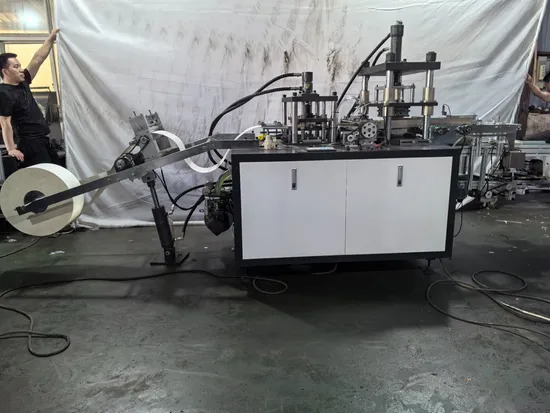

Fully Automatic Paper Plate Making Machine
| US$12,500.00 | 1 set (MOQ) |
Basic Info.
Model NO.
JNZD-D
Paper Plate Specification
5-11 Inch (Molds Exchangeable)
Speed
60-80PCS/Min
Power
380V 50Hz 8.5kw
Products High
Max.60mm
Film Width
400MM
Machine Size
4300*1250*2000 mm
Machine Weight
1600kg
Certification
CE
Condition
New
After-sales Service
Available
Working Stations
2
Paper Weight
150-400 GSM
Heating Power
4kw
Paper Materials
Paper/Paperboard, Single Aluminum-Foil/Film Coated
Transport Package
Wooden Case
Specification
4500x1500x2200mm
Trademark
KEDE
Origin
China
HS Code
8441309000
Production Capacity
200 Sets/Year
Packaging & Delivery
Package Size
450.00cm * 150.00cm * 220.00cm
Package Gross Weight
2000.000kg
Product Description
JNZD-D Automatic Rolling & Feeding Paper Plate Machine Product Description JNZD-D Automatic paper plate machine is independently developed and designed according to the needs of the market, with automatic servo motor roll paper feed, automatic die cutting, automatic indentation, heating molding, automatic disc and constant temperature control, automatic counting, automatic collection, counting and other functions. It is the ideal equipment for the production of various sizes of round paper plates, square paper plates and shaped paper plates.Machine compared with the traditional automatic paper machine, it recombines the principle of mechanical and hydraulic combination, and has the advantages of better production efficiency, more stable performance, safer operation, more convenient maintenance and more user-friendly structural design.
Machine is widely used in the production of paper or aluminum foil as raw materials of the plate. By changing the mold can produce different specifications, different shapes of round or square plate.
Product Parameters
| HS.code | 8441309000 |
| Machine Size: | (L x W x H): 4300mm x 1250mm x 2000mm ; |
| Weight: | 1600kgs |
| Plate Size | 5-11 inch (molds exchangeable) |
| Speed : | 60-80pieces/min (total two working stations). |
| Material : | Paper/paperboard, Single Aluminum-foil/film coated paper or other (150 -- 400gsm); |
| Heating power | 4KW |
| Motor Power: | 8.5KW, |
| Voltage | 380V / 50Hz |
| Air source : | Working pressure 0.8Mpa, working air volume 1m3/minute; Should buy air compressor. |
