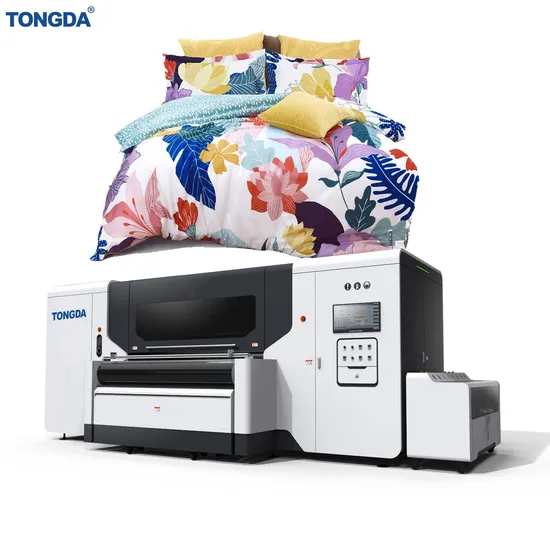

Product mode | TD1832 |
Print head
| Ricoh GEN5E/GEN6 |
Fabric conveyance mode | Adhesive belt with cleaning and heating system |
Effective print width | 1900/2200/2600mm |
Maximum printing resolution | 2400DPI |
Speed | Gen6 1 pass:1300m2/h 2 pass:650m2/h
|
RIP software | Neostampa/Texprint(ORIGIN) |
Printing part introduction | Automatic negative pressure ink supply, automatic car lifting,automatic positive pressure cleaning, automatic moisturizing,sprinkler anti-collision system.
|
Main ink tank | 15L |
Belt system introduction | Automatic drying and winding system, automatic cleaning guide belt system, anti-pressure roller print, synchronous pressure roller
|
Dryer unit | 3 tiers industry dryer with off plane
|
Ink Type | reactive/disperse/acid/pigment ink |
InterfacePower voltage | Optical fiber |
Print head height | Height adjustable 1.5-30mm,to adapt medium of different thickness
|
Power voltage | 380V, 3L+N+G(with independent reliable effective earth wire) |
Power frequency | 50HZ/60HZ+1HZ |
Power Consumption | Printer: 40kw; oven:6KW
|
Workshop Condition | Temperature:20-30°C, humidity: 50-65%
|
Effective width |
size | | 1900mm
| 2200mm | 2600mm |
Printer | 5300mm*3450mm*2200mm(L*W*H) | 5700mm*3450mm*2200mm(L*W*H)
| 6100mm*3450mm*2200mm(L*W*H) |
Dryer | 6400mm*3800mm*2700mm(L*W*H) | 6800mm*3800mm*2700mm (L*W*H)
| 7200mm*3800mm*2700mm(L*W*H)
|
Ink cabinet | 1760mm*700mm*995mm(L*W*H) |
Weight | Printer:6200Kg The bakery: 5000kg
| Printer:8000Kg | Printer:10000Kg |
