Solar Cable Mc4 Connector Waterproof From China Manufacturer

Product Description

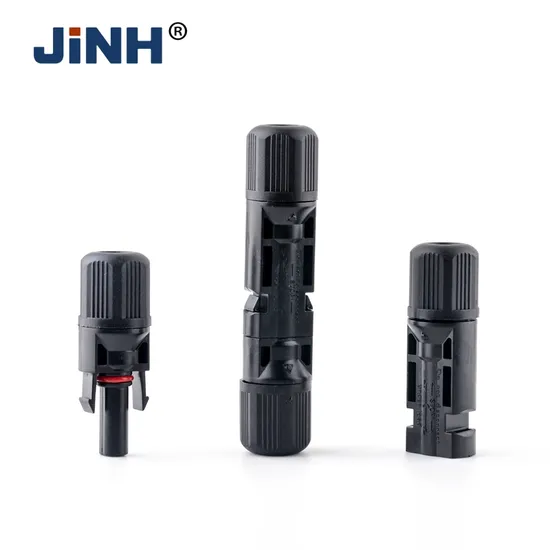

Solar Connector MC4 Advantages of Solar Connector: •Simple,quick,safe and effective filed assembly
• Develop independently,innovative design,have independent intellectual property rights,adaptive to solar connector directly
•High mechanical endurance
•Low transition resistance
•Innovative sealed,waterproof,dust resistance design:IP68
•Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 90°c,weather and UV resistant for long-time outdoor
application
•Approved by TUV
Assembly instructions for connector of PV-R4C/...Especially •During self assembly ,parts and tools other those stated by R&X are used or if the preparation and assembly instructions
described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.
•For protection against electric shock ,PV Connectors must be isolated from the power supply while being assembled or disassembled
•The end product must provided protection from electric shock
•Unplugging under load:PV plug connections must not be unplugged while under load.They can be placed in a no load state by
switching off the DC/AC converter or breaking the AC circuit interrupter.Plugging and unplugging while under voltage is permitted
•Disconnected connectors should be protected from dirt and water with sealing caps.
•Plugged parts are watertight IP68

Touch Protection,mated/unmated IP68/IP2X	Rated Current 22A(2.5mm2) ,35A(4mm2) ,40A(6mm2)
Amblient temperature -40°c ~85°c	Roted voltage 1500V DC
	Safety class ll
Type	Crimping Ranges
	mm2	AWG
PV-R4C/F-1	2.5/4.0	14/12
PV-R4C/M-1	2.5/4.0	14/12
PV-R4C/F-2	4.0/6.0	12/10
PV-R4C/M-2	4.0/6.0	12/10
