Zwb5030 Zwb5040 Zwb5050 Auto Feeding Vertical Drilling Machine with Threading Capacity

Product Description

Product Description
Technical parameter :
Feature :
Spindle auto feeding
Threading function
Tilting rotary table -45 to + 45 degree
Drilling depth indicator

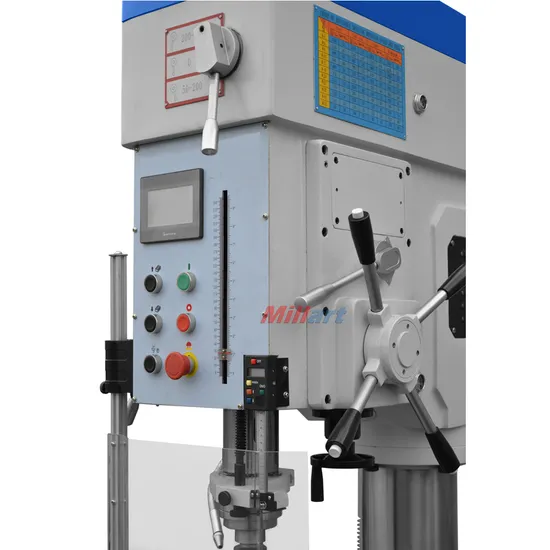

Electronic spindle and feed rate indicator
High spindle rigidity
Threading by automatic switching of the left turns
Left turn switch
Headstock, column, table and column base made of the highest quality components
Spindle and transmission shafts of hardened and heat treated steel
Top-class electric motor
A large spindle stroke
Readable control panel
Working table automatically lifted with 360 rotation and assembly grooves
Technical parameter :

Model	ZWB5030	ZWB5040	ZWB5050
Max drilling capacity	30 mm	40 mm	50 mm
Max threading capacity	M20	M27	M30
Column diameter	120 mm	160 mm	180 mm
Spindle stroke	135 mm	180 mm	240 mm
Distance from spindle to column	320 mm	360 mm	360 mm
Distance from spindle to table	540 mm	570 mm	540 mm
Distance from spindle to base	1110 mm	1160 mm	1130 mm
Spindle taper	MT4	MT4	MT5
Spindle speed	50-300/300-2500 r/min	50-250/250-2500 r/min	50-200/200-2000 r/min
Spindle feed rate	21-213 mm/min	18-183 mm/min	20-204 mm/min
Table size	420 x 360 mm	470 x 390 mm	470 x 390 mm
Base size	400 x 390 mm	450 x 460 mm	450 x 460 mm
Main motor power	1.5 kw	2.2 kw	3.0 kW
Feed motor power	90w	90w	90w
Coolant motor power	40 w	40 w	40 w
Weight	510/560 kg	690/745 kg	845/905 kg
Packing size	96x50x195 cm	117x68x233 cm	117x68x239cm

Sandard accessories:
Drill chuck
Tapper sleeve
Wrench
Optional accessories:
Safety guard
Vice 160mm Company information:
