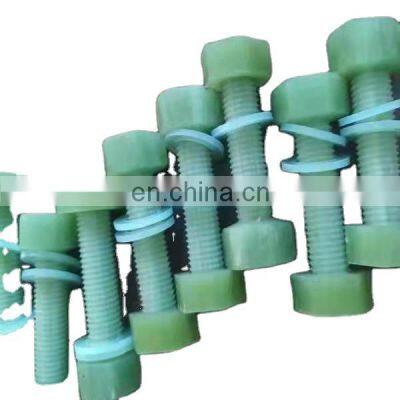

Corrosion Resistance FRP Epoxy Fiberglass Plastic Threaded Rod Screw Bolt and Nut

Product Description

Product Description
Product DescriptionTitle goes here.FRP fiberglass bolts and nuts are made of glass fiber filaments impregnated with epoxy resin matrix by high temperature pultrusion. The company adopts a full CNC vacuum demoulding and pultrusion technology production line, which has reached the current domestic level. It is equipped with an online speed tracker, a temperature control system, and improves the uniformity and heat resistance of the insulating rod. It is produced by Bipu FRP and unsaturated resin. The equipment has better stability and controllability. This product is suitable for use in electrolytic aluminum plants, where the short-circuit port of the electrolytic cell is used as an insulating bolt. It is an ideal substitute for MPI insulation bolts.Specification1,Long-term working temperature:170—200℃Maximum short-circuit working temperature:230℃Size:Ø8、Ø10、Ø12、Ø16、Ø17、Ø18、Ø20、Ø22、Ø24、Ø25、Ø26、Ø30、Ø32、Ø34、Ø35、Ø36、Ø38、Ø40、Ø42、Ø43、Ø44、Ø45、Ø50、Ø60、Ø70 Length: Accept customized Item Technical indexDensity (g/cm3)≥2.1Tensile Strength(Mpa)≥1360Siphon test(Min）＞20Water diffusion test (mA)＜0.03Withstand voltage test(kV)＞100Stress corrosion(h）＞96Bending strength(Mpa)＞100Hot bending strength(Mpa)≥260Volume resistivity(Ω.m)≥1012Fiber content (%)≥80Power frequency breakdown voltage (Kv/cm )≥100Full wave impulse voltage (Kv/cm )≥95Water absorption (%)＜0.05Product FeaturesDue to the continuous pultrusion of the product, each glass filament in the product is guaranteed to be a whole filament, which makes the product's resistance to mechanical pressure and mechanical tension very excellent, and the product's tensile strength is 570 Mpa. Excellent electrical performance, withstand voltage rating of 10KV---1000KV voltage range, strong corrosion resistance, high bending strength, not easy to bend, easy to use and other characteristics.Product detailsContact
