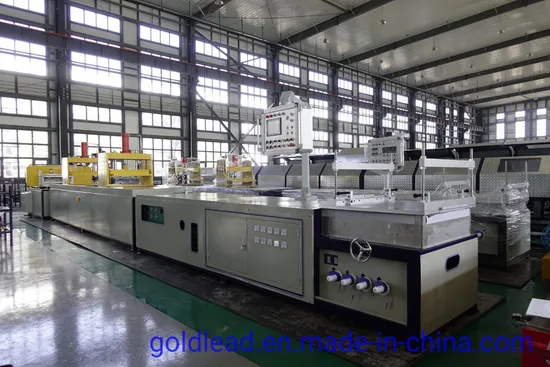

China High Quality Professional New Condition Experienced FRP Pultrusion Machine
| Negotiable | 1 Set (MOQ) |
Basic Info.
Model NO.
LJ-Y-200/8030
Automatic Production Line
Comprehensive
Certification
ISO, CE
Automation
Automation
Flexible Production
Agile Manufacturing
Rhythm
Flow Production Line
Production Scope
Product Line
Transport Package
as Customer′s Requirement
Trademark
GOLD LEAD
Origin
Jinan, China
HS Code
84778000
Product Description
| FRP 20T pultrusion machine | |||
| Machine characteristic: | |||
| Touch screen controlling system, it can display heating temperature, traction speed and traction force. Also the temperature and traction force can be adjusted on the touch screen. Easy operation for the workers. The line is suitable for three molds production at the same time. The three jacks can work together or separately. | |||
| The machine includes: | |||
| Items | Description | Qty | Technical data |
| 1 | Roving creels | 2pcs | Ivory paint, combined structure, easy accessibility Rolls capacity: 70-100 5 layers Dimension: 2000mm(L)x600mm(W)x2000mm(H) |
| 2 | Resin bath | 1pc | Capacity: 50kg Bath dimension: 1030mm(L)x720mm(W)x190mm(H) Dimension: 1100mm(L)x810mm(W)x900mm(H) Stainless type |
| 3 | Calibrating table | 1pc | Size of mold table: 1450mm(L)x900mm(W) Length of mold: 900mm Temperature control zones: 18 Heating power: 220V/50HZ max 4KW per zone Dimension: 4800mm(L)x1500mm(W)x1980mm(H) |
| 4 | Traction machine | 1pc | Clamping envelope: 3x400mm(W)x300mm(H) Max traction force: 200KN Max clamping force of traction heads: 200KN Traction speed: 0.1m-1.0m/min Max traction to-and-fro journey: 500mm Clamping journey: 155mm Traction cylinder: DN125-500 Clamping cylinder: DN80-155 Oil pump power: 380V 50HZ 2x5.5KW Cooling water pump power: 220V/50HZ 0.75KW Dimension: 4800mm(L)x1650mm(W)x1850mm(H) |
| 5 | Cutter (High precision type) | 1pc | Cutting range: 1100mm(W)x240mm(H) Rotation speed of cutting blade: 1450rpm Cutting power: 3KW Diameter of cutting blade: ∮600mm/∮50mm (inner) Dust collection: vacuum cleaner 1.5KW Cutting tracing journey: 700mm Cutting mode: auto/manual Fix-length cutting mode: limit switch Dimension: 2700mm(L)x2100mm(W)x1800mm(H) |
| 6 | Creel for finished products | 1pc | Structure: square tube and steel plate welded Standard configuration: platform type Dimension: 6000mm(L)x550mm(W)x900mm(H) |
| Control system | Touch screen: 8" Omron, Japan Temperature controller: Omron, Japan Solid-state relay: Omron, Japan PLC: Omron, Japan Motors: ABB Cylinder of hydraulic system: FESTO | ||
