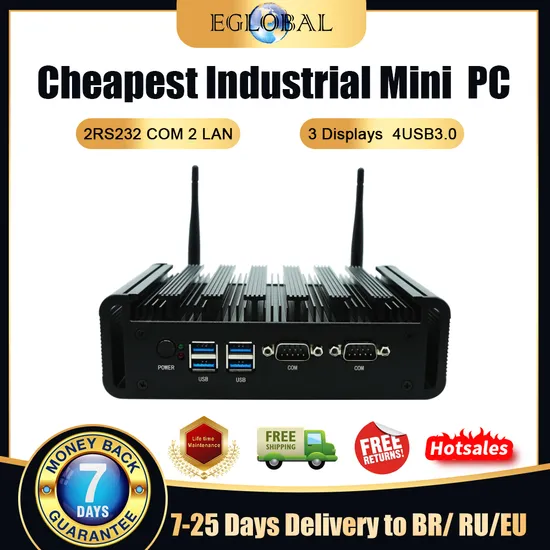

Eglobal Industrial PC Intel Core I3-8145u 8g DDR4 128g SSD WiFi5 Win10PRO Mini PC

Product Description

Model: M8A-8145U
CPU: Onboard 8th Gen Whiskey Lake 14nm CPU Intel Core i3-8145U Dual Cores Four Threads 2.1GHz up to 3.9GHz(Turbo boost Technology) 4MB cache TDP 15W Intel® UHD Graphics.
Model: M8A-8260U
CPU: Onboard 8th Gen Whiskey Lake 14nm CPU Intel Core i5-8260U 4 Cores 8 Threads 1.6GHz up to 3.9GHz(Turbo boost Technology) 6MB cache TDP 15W Intel® UHD Graphics 620.
Model: M8A-10110U
CPU: Onboard Intel Comet Lake Refresh Intel Core i3-10110U Processor, 4M Cache, 2.1GHz up to 4.1GHz (Turbo boost Technology) 2 Cores 4 Threads TDP 15W Intel® UHD Graphics.
Model: M8A-10210U
CPU: Onboard Intel Comet Lake Refresh Intel Core i5-10210U Processor, 6M Cache, 1.6GHz up to 4.20GHz (Turbo boost Technology) 4 Cores 8 Threads TDP 15W Intel® UHD Graphics.
Model: M8A-10610U
CPU: Onboard Intel Comet Lake Refresh Intel Core i7-10610U Processor, 8M Cache, 1.8GHz up to 4.9GHz (Turbo boost Technology) 4 Cores 8 Threads TDP 15W Intel® UHD Graphics.
Model: M8A-6405U
CPU: Onboard Intel Comet Lake Refresh Intel Pentium 6405U Processor, 2M Cache, up to 2.4GHz (Turbo boost Technology) 2 Cores 4 Threads TDP 12.5W Intel® UHD Graphics. Product Highlight: - Brushed Full aluminum alloy case, compact structure and fanless system no any noise.
- Support 2 x DDR4 RAM slot, max 64GB DDR4 RAM.
- Dual Gigabit Ethernet and 2 x RS232 COM ports.
- Support HDMI 2.0+HDMI 1.4+DP 1.2 three displays outputs.
- Support MSATA SSD+M.2 slot for NVME 2280 SSD and 2.5inch SATA3.0 HDD together.
- Multiple processors can be customized for bulk order such as Celeron 5205U, Pentium 5405U/6405U, Core i3-8145U, Core i5-8265U/8365U/8269U, Core i7-8565U/8569U, Core i3-10110U, Core i5-10210U/10310U, Core i7-10510U/10610U/10710U.

Basic Information
CPU	Refer to the CPU
TDP	Refer to the CPU
BIOS	AMI EFI BIOS
Chipset	Refer to the CPU
Memory Specifications
Memory Types	2 x SO-DIMM DDR4 Slot Support 4GB/8GB/16GB/32GB/64GB
Memory Channels	Dual Channels
OS	Windows®8/10, WES10, LINUX
PXE	YES
Network	2 x Onboard RTL8111 Gigabit Ethernet NIC 10/100Mbps/1000Mbps BaseT LAN
Processor Graphics	Refer to the CPU
Wi-Fi:
Module	1 x MSATA-half slot for WiFi & Bluetooth module
Antenna	2 x inner RF cables and 2 x external antennas
Input/output port
Switch	1 x Power On/Off Switch
Power	1 x 12V DC In
LED	2x LED
USB	4 x USB3.0
Display	1 x HDMI 2.0, 1 x HDMI 1.4, 1 x DP 1.2
LAN	2 x RJ45 Giga LAN
Audio	1 x Headphone jack, 1 x Microphone
COM	2 x DB9 RS232 COM
Others	2 x Kensington Lock holes
Storage
MSATA	1 x M-SATA3.0 slot for MSATA SSD
M.2	1 x M.2 slot for NVME 2280 SSD
SATA	1 x SATA3.0 slot for SATA HDD or SSD
Product Dimension & Details:
Case Material	Black aluminum alloy(any customized color for bulk order)
Dimension	PC size 178.3x127.5x55.0mm
	Package size 320*240*10mm
Weight	Net 2kg, Gross 2.5kg
Functions	PXE, Auto Power On, RTC
Cooling Mode	Fanless
Package Content
Standard	1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag, 1xBracket
Optional	Wi-Fi antennas, 1xHDMI cable, 1xUser Manual, 1xVESA mount
Power and Working Environment
Input	100-240V AC/50-60Hz
Output	DC+12V~+19V, recommend 12V/5A
Operating Temperature	-20°C/+60°C
Storage Temperature	-30°C/+70°C
Relative Humidity	10%~95% @30°C(non-condensing)
