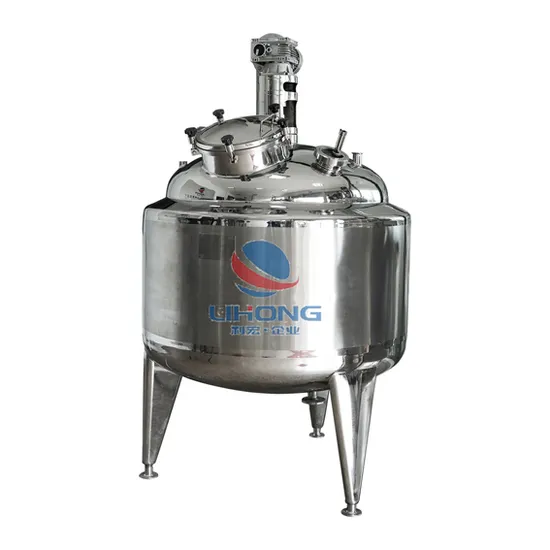

Stainless Steel Double Layer Jacket Mixing Pot (Reactor)

Product Description

Product Description
Double Layer Jacket Mixing Pot
(pressure vessel available)
Application:
Mixing milk, juice, or any other viscous liquid
Used as liquid storage, liquid mixing, temporary storage, etc. It is also ok to mix liquid and powder.
Ideal in fields such as foods, dairy products, fruit juice beverages, pharmaceutical, chemical industry and biological engineering etc.

Tank Parameters Sheet
Material:	SUS304 or SUS316L
Volumn:	100L ~20,000L
Agitator Brand:	Chinese brand or European brand
Agitator Type:	Paddle type, propeller type, anchor type, frame type, etc.
Agitator Seal:	Alloy mechanical seal
Structure:	With Jacket , jacket for heating(can pass steam, hot water, hot heating oil)jacket for cooling, or jacket for both heating and cooling)
Jacket Type:	Dimple jacket, coil tube, etc
Temperature Isolation Material:	PU foam or rock wool
Motor Place	Top motor, side motor or bottom motor
Motor Speed:	Fixed(36rpm, 60rpm, etc), Adjustable(like 10-100rpm) through frequency inverter.
Reducer Type:	Cycloidal reducer, stepless speed reducer.etc
Head and Bottom:	Conical or dish, as per requirements
Heating Way:	Steam heating or electricity heating
Power:	380V/3/50Hz, 220V/3/60Hz, etc
Finish:	Sanitary finish, without dead angle. Internal surface is mirror polished, outside surface is satin finish.
This tank is customized, please send us your requirements of the tank.

Configure:
Sanitary manhole, agitator, inlet and outlet, 360 degree rotation spray ball, aseptic air vent, thermometer,
manometer, level gauge,etc.
Ladder(if needed)
Adjustable legs
Motor Place:
Common Agitator Blade Type(Customized ones are available):
Basic Details:

Volume(L)	Dimension	Inlet & Outlet(mm)	Motor Power(kw)	Motor Speed(rpm)
500	840 x 1000	38	0.55	Common rotation speed is 36, 43, 60rpm. Stepless speed reducer or dual-speed reducer is also available
600	920 x 1000	38	0.55
700	990 x 1000	38	0.55
800	950 x 1220	38	0.55
900	1010 x 1220	38	0.55
1000	1060 x 1220	51	0.75
1500	1160 x 1500	51	0.75
2000	1340 x 1500	51	1.1
3000	1410 x 2000	51	1.5
4000	1620 x 2000	51	1.5
5000	1810 x 2000	51	2.2
6000	1980 x 2000	51	2.2
7000	1930 x 2440	51	2.2
8000	2060 x 2440	51	3
9000	2180 x 2440	51	3
10000	2300 x 2440	51	3
12000	2270 x 3000	51	4
15000	2530 x 3000	51	4
20000	2640 x 3660	51	5.5

Warranty: One year after receiving equipment, offer life long after sale service.
Installation and commissioning: We can send professional engineer to install and commission the equipment.
Maintenance services: any malfunction happened, once you enquiry us, we will reply you within 24 hours except the special reasons.
Inspection: the third party inspection company or yourself to inspect the products before shipment.
Documentation: User manual, Maintenance manual, Equipment test report, etc.
FAQ:
1. Are you a factory or trading company?
We are a factory
2. How long is the warranty period?
One year
3. What's the main market of your company?
We have customers all over the world
4.What's your delivery time?
Normally it is around 30 days, the exact time depends on product type and quantity.
5. What's the payment terms?
TT, LC, etc
6. Can we visit your factory?
Welcome to visit our factory!
7. Where is your factory? How can we go there?
Our factory locates at Wenzhou city, Zhejiang Province, who is very near the airport, you can take the plane to Wenzhou airport and we will go to airport to pick up you.
Product Photos:
