ZD322 LCD display Handheld Rebar Detector

Product Description

Product Description

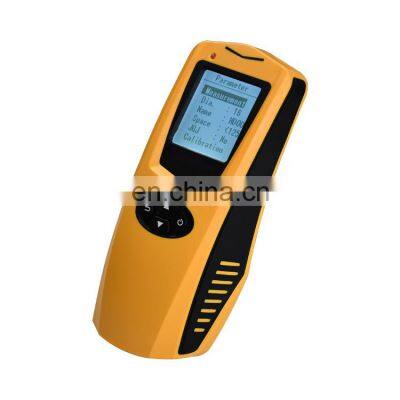

Portable Rebar Detector/Scanner
Usage Overview
The first generation portable rebar integrated detector uses an electromagnetic induction method, which can detect the rebar location and cover thickness & diameter accurately, store, transfer and analyze the real time test data. The model is the pinnacle of work with the modern simple design, incorporating the handy & durable features and sophisticated electronic technology. series rebar detector is mainly used to test the location, distribution, direction, the thickness of rebar and the diameter of cover in concrete structure such as walls, columns, beam-slabs etc. It can also detect the location of pipelines and metal embedded parts.
The multiple coil structure design make it more accurate＆responsive and higher resolution.
Product Features
1. measure the diameter of the rebars on the concrete surface; measuring range:φ6~φ50mm
2. measure the comcrete cover thickness; mesuring range:1~120mm
3. measures the location and orientation of reinforcement bar (rebar) or metal pipe.
Technical Parameters

Items	Technical Spec.
Diameter Measuring Range（mm）	Ф6～Ф50
Measuring Range（mm）	Location Range: 1～120 First Range: 1～60 Second Range: 30～120
Thickness Measuring Accuracy（mm）	1～40	±1
		41～60	±2
		61～80	±3
		81～100	±5
		101～120	±8
Rebar Location Accuracy	1～60	±3
		61-120	±6
Diameter Measuring Modes	Optional
JGJ Measurement	Optional
Data Storage	Optional
Off Time	Automatic
Power Supply	Rechargeable Lithium Battery
Working Temperature	-10℃～+42℃
Size（mm）	188×145×140
Weight（kg）	0.745

Our Advantages
a. Package: Each product is individually packaged, providing instructions for chargers etc.
b. Security: No nuclear radiation and waste gas pollution, safe operation and use, environmental protection.
c. Operation: Simple operation, fast test speed, detection point only 35 seconds.
