Fasec High Quality Manufacturer Aluminum Composite Panel Acm ACP Grooving Wheel

Product Description

Product Description

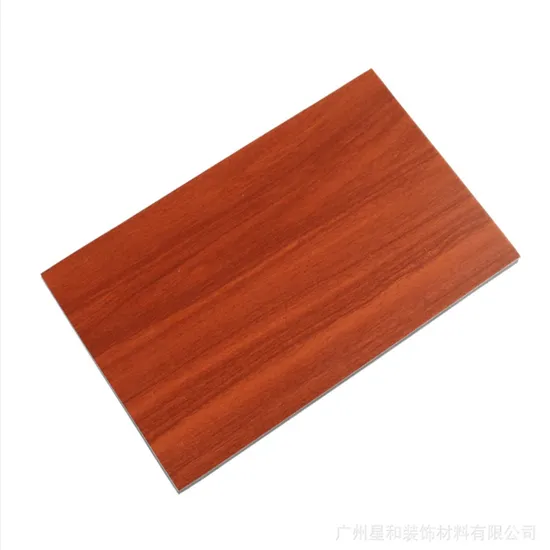

Aluminium composite panels are composed of two thin, massive aluminium sheets that are bonded to a core of the plastic polyethylene. Together with the plastic core, the aluminium forms a sort of sandwich. That is why the panels are also called aluminium sandwich panels. The two completely different material (metal and non-metal) not only retains the main characteristics of the original materials (metal aluminum and non-metallic polyethylene plastic), but also overcomes the shortcomings of the original materials, thus obtaining many excellent material properties, such as luxury, colorful decoration, weather resistance, corrosion resistance, impact resistance, fire prevention, moisture prevention, sound insulation, heat insulation, and seismic resistance; Lightweight, easy to process, easy to handle and install, and other characteristics.

Product Advantages
Aluminium composite sheets are easy to cut, drill and shape This makes the material a popular choice for a wide range of cladding applications. Aluminium composite sheets can be used to create a striking façade, interiors, signage, modular kitchen or can be used to create subtle, understated cladding.
ACP is also lightweight and easy to install, making it a popular choice for both internal and external cladding. ACP is a low maintenance cladding material When compared to other materials, facade cladding made from aluminum requires less maintenance. For example, wood ages and can peel off, and it needs to be sanded and painted every few years.
Does not require painting or weatherproofing ACP sheets are made by sandwiching layers made of aluminum foil with LDPE, gluing them under extreme heat and pressure, and then creating a sturdy, waterproof product that comes in a wide range of styles to make an attractive and cost-effective rain-screen façade.
ACP is also a fire resistant cladding material ACP panels are available in fire-retardant and anti-bacterial variants, making them some of the most preferred cladding materials in the world. Fire-retardant ACP panels are resistant to fire, as they do not conduct heat very quickly, making it an ideal choice for both commercial and residential buildings.
Multiple Use Cases Buildings, particularly those that are completely covered, are a common sight today. As well as external cladding, ACP is also used to construct partitions, false ceilings, and other architectural elements. It is still primarily used for external cladding, although ACP is also used for partitions, false ceilings, and other applications. ACP is a lightweight, weatherproof material that is used extensively in the signage industry as an alternative to heavier, more expensive substrates. Because of its durability, efficiency, flexibility, light weight, ease of processing and forming, it can be used to design more innovative products. ACP is a aluminium sheet that can be painted in any colour, metallic or nonmetallic, as well as patterns that mimic wood or marble in addition to its durability and rigidity.
Detailed Photos
Product Parameters

Product Description	ACP Aluminium Composite Panel
Aluminium Skin Layer	0.05mm, 0.1mm, 0.15mm, 0.2mm, 0.25mm, 0.3mm, 0.4mm, 0.5mm
Panel Thickness	2mm, 3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 12mm
Panel Width	1220mm, 1250mm, 1550mm, 1570mm, 2000mm
Panel Length	2440mm, 3200mm, 4000mm, 5000mm, 6000mm,7000mm, 8000mm
Surface Coating	PE coating, PVDF coating, NANO, Brush surface, Mirror surface
Inner Core	Non toxil PE core or fireproof inorganic material inner core
Color	Solid Matt Color, Solid Glossy Color, Metallic Brushed Color, Marble Grain Color, Wooden Grain Color
Packing	Wooden pallet, steel pallet, or bulk
Qty	100 sheets per pack 1*20' FT container: 1500 sheets for size 1220*2440mm panel

Project Photos
Packaging & Shipping
Installation Instructions
-When cutting ACP, use a sharp knife or Stanley knife. Score the face of the ACP sheet first, then snap the sheet along the score line.
-When drilling ACP, use a sharp HSS drill bit. Start the hole with a small pilot hole, then increase the size of the hole to the desired size.
-When shaping ACP, use a sharp jigsaw. ACP can be easily cut and shaped using standard woodworking tools.
-When installing ACP, use screws or rivets. ACP can be installed using a variety of methods, including screws, rivets or adhesive.
