Stainless Steel Black Chrome Coating Flat Plate Pressurized Solar Water Heater 100-300L

Product Description

Product Parameters
Flat plate solar water heater
Specifications and Details

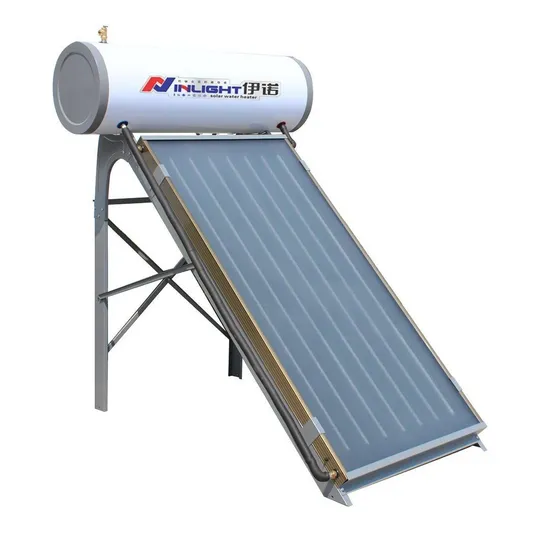

PHOTO	Pressurized Flat-Plate Solar Water Heater
	1. Inner Tank: Imported food-grade stainless steel SUS304-2B 1.2MM
	2. Tank Exterior Shell: Color steel 0.40MM
	3. Tank Insulation: High-density polyurethane integrated foam-forming layer with 72~80 hours heat preservation
	4. Flat Plate: Copper & aluminum ultrasonic welding, Black chrome coating, Texture tempered glass cover, Glass wool insulation
	5. Bracket: Galvanized Steel Bracket 1.5mm, universal bracket suitable for slope and flat roof installation
	6. Optional Devices:Intelligent controller TK-7Y
	7. Accessories:Electrical heater, Safety valve, check valve, anode magnesium, copper connectors
	8. Angle of bracket:27°
	9. Working pressure: 6.0 bar
	10. Hot water Output:45-90ºC
Item No.	Flat Plate Panel Item No.	Panel Sizes (mm)		Panel Nos. (pcs)	Aperture Area	Tank Liters	PU Foam (mm)	CBM/SET	Loading Qty (sets)		USD/SET FOB Shanghai
									20GP	40HQ
ILPFSC-100-2M	IL-2B/AC	2000*1060*80mm		1	2 m2	100L	50	0.563	55	128
ILPFSC-150-2M	IL-2B/AC	2000*1060*80mm		1	2m2	150L	50	0.660	47	109
ILPFSC-200-2.5M	IL-2.5B/AC	2000*1310*80mm		1	2.5m2	200L	50	0.822	37	87
ILPFSC-250-3M	IL-3B/AC	2000*1560*80mm		1	3m2	250L	50	0.977	31	73
ILPFSC-300-4M	IL-2B/AC	2000*1060*80mm		2	4m2	300L	50	1.212	25	59

PHOTO	Pressurized Flat-Plate Solar Water Heater
	1. Inner Tank: Imported food-grade stainless steel SUS304-2B 1.2MM
	2. Tank Exterior Shell:High quality SUS201 0.4MM
	3. Tank Insulation: High-density polyurethane integrated foam-forming layer with 72~80 hours heat preservation
	4. Flat Plate: Copper & aluminum ultrasonic welding, Black chrome coating, Texture tempered glass cover, Glass wool insulation
	5. Bracket: Stainless Steel SUS201 1.2MM, universal bracket suitable for slope and flat roof installation
	6. Optional Devices:Intelligent controller TK-7Y
	7. Accessories:Electrical heater, Safety valve, check valve, anode magnesium, copper connectors
	8. Angle of bracket:27°
	9. Working pressure: 6.0 bar
	10. Hot water Output:45-90ºC
Item No.	Flat Plate Panel Item No.	Panel Sizes (mm)		Panel Nos. (pcs)	Aperture Area	Tank Liters	PU Foam (mm)	CBM/SET	Loading Qty (sets)		USD/SET FOB Shanghai
									20GP	40HQ
ILPFAF-100-2M	IL-2B/AC	2000*1060*80mm		1	2 m2	100L	50	0.563	55	128
ILPFAF-150-2M	IL-2B/AC	2000*1060*80mm		1	2m2	150L	50	0.660	47	109
ILPFAF-200-2.5M	IL-2.5B/AC	2000*1310*80mm		1	2.5m2	200L	50	0.822	37	87
ILPFAF-250-3M	IL-3B/AC	2000*1560*80mm		1	3m2	250L	50	0.977	31	73
ILPFAF-300-4M	IL-2B/AC	2000*1060*80mm		2	4m2	300L	50	1.212	25	59

PHOTO	Pressurized Flat-Plate Solar Water Heater
	1. Inner Tank: Imported food-grade stainless steel SUS304-2B 1.2MM
	2. Tank Exterior Shell:High quality SUS304 0.4MM
	3. Tank Insulation: High-density polyurethane integrated foam-forming layer with 72~80 hours heat preservation
	4. Flat Plate: Copper & aluminum ultrasonic welding, Black chrome coating, Texture tempered glass cover, Glass wool insulation
	5. Bracket: Stainless Steel SUS201 1.2MM, universal bracket suitable for slope and flat roof installation
	6. Optional Devices:Intelligent controller TK-7Y
	7. Accessories:Electrical heater, Safety valve, check valve, anode magnesium, copper connectors
	8. Angle of bracket:27°
	9. Working pressure: 6.0 bar
	10. Hot water Output:45-90ºC
Item No.	Flat Plate Panel Item No.	Panel Sizes (mm)		Panel Nos. (pcs)	Aperture Area	Tank Liters	PU Foam (mm)	CBM/SET	Loading Qty (sets)		USD/SET FOB Shanghai
									20GP	40HQ
ILPFSS-100-2M	IL-2B/AC	2000*1060*80mm		1	2 m2	100L	50	0.563	55	128
ILPFSS-150-2M	IL-2B/AC	2000*1060*80mm		1	2m2	150L	50	0.660	47	109
ILPFSS-200-2.5M	IL-2.5B/AC	2000*1310*80mm		1	2.5m2	200L	50	0.822	37	87
ILPFSS-250-3M	IL-3B/AC	2000*1560*80mm		1	3m2	250L	50	0.977	31	73
ILPFSS-300-4M	IL-2B/AC	2000*1060*80mm		2	4m2	300L	50	1.212	25	59

Product Description
1. Inner Storage Tank: Food-grade stainless steel SUS304-2B,1.2-2.0mm thickness
3. Tank Exterior Shell: High-quality white coated color steel 0.5 mm
4. Tank Insulation: High-density polyurethane integrated foam-forming with lasting heat preservation
5. Flat Solar Collector Core: Copper and Aluminum composited
6. Solar collector header: Copper TP2,22mm* 0.6mm (2 pieces)
7. Solar collector riser: Copper TP2,8mm* 0.6mm ( 7 pieces)
8. Absorptive coating: High selective Germany blue titanium coating
9. Insulation material: Fiberglass,30mm thickness
10. Cover material: Low iron tempered glass
11. Frame material: Aluminum alloy
12. Back material: Galvanized steel
13. Sealing Gasket: EPDM
14. Bracket and support: Aluminum alloy 1.8mm, suitable for wall installation
15. Solar Pump Station: SP106, high pressure expansion vessel
16. Accessories: Thermostat electrical heater , Anode magnesium, T/P & Safety valve
17. Rated working pressure: 6.0 Bar
18. Frost resistance: > - 40°C (based on the anti-freeze liquid ice point)
19. Package type: Seaworthy carton
Detailed Photos
