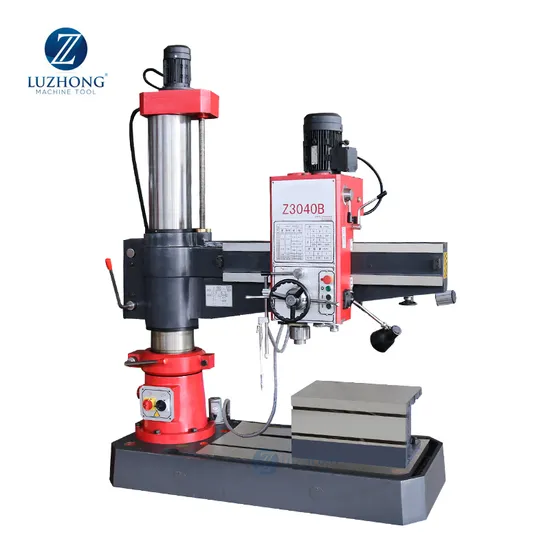

Automatic tool retraction high precision Z3040*11B radial drilling machine for sale
Basic Info.
Model NO.
Z3040*11B
Structure
Radial Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Precision
Certification
GS, CE, ISO 9001
Condition
New
Max.drilling dia.
40mm
Spindle travel
250mm
Spindle taper
MT4
Spindle speed range
75-1200rpm
Spindle speed steps
6
Main motor power
2.2kw
Transport Package
Plywood Case
Specification
1500*705*2200mm
Trademark
Luzhong Machine Tool
Origin
China
Packaging & Delivery
Package Size
150.00cm * 70.50cm * 220.00cm
Package Gross Weight
1600.000kg
Product Description
Automatic tool retraction high precision Z3040*11B radial drilling machine for saleProduct Description
Product Parameters
| SPECIFICATIONS | Units | Z3040xllB |
| Max. drilling dia. | mm | 40 |
| Distance between spindle nose and table surface | mm | 170-1100 |
| Distance from spindle axis to column surface | mm | 330-1050 |
| Spindle travel | mm | 250 |
| Spindle taper | - | MT4 |
| Spindle speed range | rpm | 75-1200 |
| Spindle speed steps | - | 6 |
| Spindle feed range | mm/r | 0.10-0.25 |
| Spindle feed steps | - | 3 |
| Main motor power | kw | 2.2 |
| Lifting motor power | kw | 0.75 |
| Machine weight | kg | 1600 |
| Overall dimension | mm | 1500*705*2200 |
Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on . 3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us. 4. What is your trade terms?
A : FOB, CFR and CIF all acceptable. 5: What's the Payment Terms ?A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight . 5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
