Biobase Table Top Freeze Dryer Bk-Fd10s Standard Chamber Deep Temp -60/80 Degree for Laboratory

Product Description

Product Description

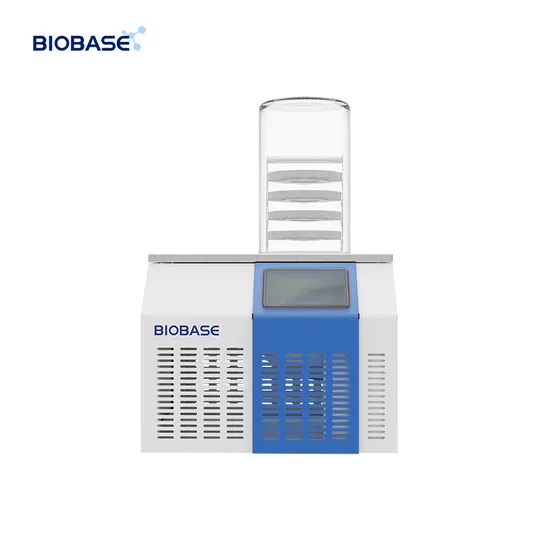

BIOBASE Freeze Dryer
BK-FD10S Introductions:
Vacuum freeze-drying technology is also known as sublimation drying. The principle is to freeze a sample containing water in advance, and then sublimate its moisture under vacuum. The original biological, chemical and physical properties of the freeze-dried samples remain basically the same, and they are easy to be stored for a long time. After adding water, the samples can be restored to the state before freeze-drying, and their original biochemical characteristics can be maintained. Therefore, freeze-drying technology is widely used in food, chemical, biological products and other fields.
Features:
1. Compressor, energy saving and high efficiency, low noise, long life.
2. Vacuum pump, small volume, pumping speed, low noise, can achieve higher vacuum.
3. Integrated design, compact structure, easy to use.
4. Environmentally friendly refrigerant, ODP=0.
5. With defrosting function, safe and reliable
6. The cold trap and operating table are made of stainless steel, corrosion resistant and easy to clean.
7. The transparent cover of the drying chamber is made of aviation acrylic material, with high strength and no bonding.
8. Large cold trap opening size, with pre-freezing function, no need for low temperature refrigerator.
9. Professional gas diversion technology, high freeze-drying efficiency, and uniform ice capture. Product Parameters

Model		BK-FD10S	BK-FD10P	BK-FD10T		BK-FD10PT
Type		Standard chamber	Standard chamber with 8 port manifold	Stoppering chamber		Stoppering chamber with 8 port manifold
Freeze Drying Area		0.12m²		0.08m²
Tray		4pcs		3pcs
Height Between Trays		50mm			/
Cold Trap Temperature		≤-60ºC(No load)(-80ºC optional)
Cold Trap Capacity		6L
Cold Trap Size(Diameter*H)		Φ219*140mm
Vacuum Degree		≤5Pa
Water Capture Capacity		3~4L/24h
Tray Size(D*H)		φ200*20mm		φ180*20mm
Freeze Drying Time		36h
Loading Capacity/Shelf(Liquid)		1.2L		0.8L
Total Loading Capacity(Liquid)		2.4L		1.6L
Drying Chamber Size(Diameter*H)		Φ260*420mm	φ260*465mm
Total Qty. of Vial φ22		/	/	147		147
Total Qty. of Vial φ16		/	/	297		297
Total Qty. of Vial φ12		/	/	492		492
Refrigerant		-60ºC: R600a, R23 -80ºC: R404a, R23
Cooling System		Standard: Air cooling
Power Supply		Standard: 220V, 50Hz Optional: 220V, 60Hz
Power Consumption		1300W
Standard Accessory		Vacuum pump 2L/S, Material tray*4(Material tray*3 for T/PT), Drying rack*1, Cover*1, Acrylic bucket*1(all models) Conical-mouth flask 100ml*2pcs, 200ml*2pcs, 250ml*2pcs, 500ml*2pcs, Switch valve*8pcs(only for model BK-FD10P/PT), USB port
Optional Function&Accessory		Equipment moving frame, vacuum pump of other specifications, vacuum regulation, oil mist filter, automatic air intake, automatic water discharge and other customization(for all models) 600ml/1200ml Wide-mouth flask(for BK-FD10P/PT)
External Size(W*D*H)mm		640*610*550
Package Size(W*D*H)mm	Main body	735*720*760
	Accessory	720*605*560
Gross Weight(kg)	Main body	-60ºC: 80 -80ºC: 98
	Accessory	45	49	54		56
