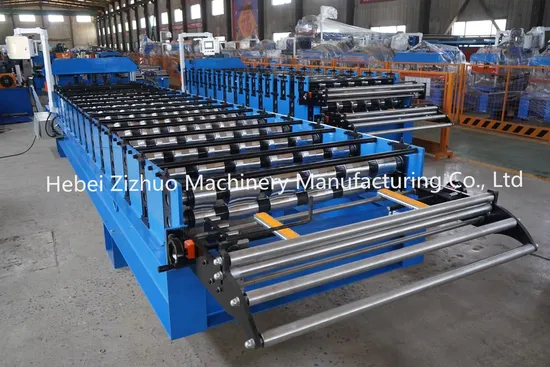

New Design Color Steel Roof Tile Rooing Sheet Cold Roll Forming Machine
| US$12,000.00-22,500.00 | 1 Set (MOQ) |
Basic Info.
Tile Type
Colored Steel
Certification
CE, ISO
Condition
New
Customized
Customized
Usage
Roof
Transmission Method
Hydraulic Pressure
Color
as Customer′s Request
Roller Material
#45 Steel with Heat Treatment
Body Frame
350h Beam
Wall Plate
16mm
Machine Weight
5500kg
Voltage
220V-460V
Shaft
70mm Solid
Transport Package
Nacked
Specification
8.5*1.5*1.85m
Trademark
zz
Origin
China
HS Code
8455221000
Production Capacity
100sets/Year
Product Description
Double Layer Decking Corrugated and Trapezoidal Roofing Sheet Cold Roll Forming IBR Box Profile Tr4 Tr5 Pv4 Pv6 Steel Building Material Machine Factory Price Detailed PhotosProduct Parameters
| No. | Item | Parameter | Remark | |
| 1 | Suitable material | Type | Color steel, galvanized steel | |
| Thickness(mm) | 0.35-0.7mm | Test material standard 0.45mm | ||
| Yield strength (Mpa) | ≤300mm | |||
| Width (mm) | About 1220mm | |||
| 2 | Forming speed | About 1-4 m/m | Not include cutting time | |
| 3 | Motor of forming system (kw) | 5.5kw | Depends on final design | |
| 4 | Hydraulic station power(kw) | 4kw | Depends on final design | |
| 5 | Voltage requirements | AC380V, 50Hz, 3phase | According to the customer's request | |
| 6 | Roller material | #45 steel with heat treatment 58-62 degrees | ||
| 7 | Shaft diameter | 70mm solid | ||
| 8 | Control system | PLC with touch screen | Delta brand | |
Packaging & Shipping
Exhibition and customers
