Advanced CNC Metal Circular Saw Machine for Efficient Cutting

Product Description

Product Description

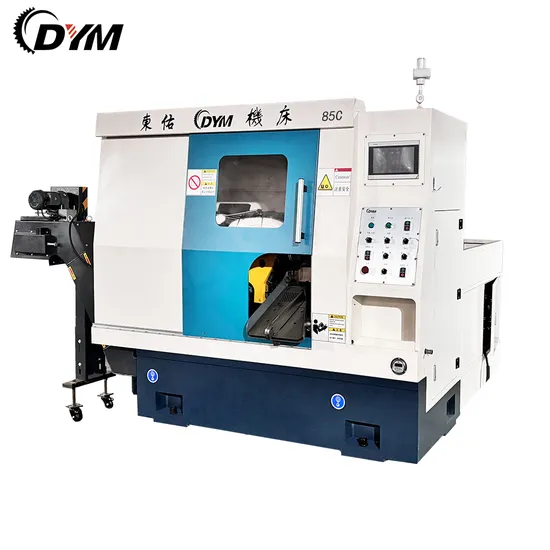

CNC High Speed Metal Circular Saw Machine
The metal circular saw machine is made up of the machine foundation, head spindle, feeding system, clamping device, auto feeding, feeding rack, hydraulic system, electrical system, cooling device, lucbrication system, chain-plate type chip conveyor, blade cleaning device, etc .
CNC High Speed Metal Circular Saw Machine is a cutting-edge tool designed for precision cutting of metal materials. With advanced CNC
technology, this machine offers high-speed cutting capabilities, allowing for efficient and accurate results. The circular saw design ensures smooth and clean cuts, making it ideal for industrial applications where precision is key.




Product Feature
Gear Box :
The head spindle is the key device of the machine. It is made of high-quality ductile iron cast, the wheel ,bearing and sealing parts all used import brand ,ensured the overall smooth operation of the machine and the service life of components . Using imported TCT circular saw blades, cutting speed fast with high precision and long service life .
CNC System:
Using PLC for automatic control , the whole process CNC control . The HMI operation is easy and convenient .
Lubrication Cooling System :
Adopting the advanced MQL saw blade spray-mist lubrication technology helps to improve cutting accuracy and surface quality, save energy,protect the environment, reduce costs, and extend the service life of saw blades.
AC Servo Feeding System :
Adopting the advanced AC servo motor with high precision ball screws for feeding the blade and material .
One-Piece Casting Foundation :
The machine foundation is high-strength casting material with high rigidity, shock resistance, little deformation, and outstanding shock absorption.
Chain-type Chip Conveyor :
The use of a chain plate automatic chip conveyor effectively prevents debris adhesion, increases chip removal capacity, and maintains internal cleanliness of the equipment. The equipment can automatically protect itself in case of overload, avoiding equipment damage and improving equipment service life. High intensity, stable and quiet movements, ensuring high efficiency and stability during long-term operation.
Product Parameters

Model : DYM-85C
Cutting Capacity	Round	Ф10-85mm
	Rectangle	10-60mm
	Round Tube	Ф10-85mm
	Rectangle Tube	10-60mm
Head Spindle	TCT Saw Blade	Ф300*T1.75*2.0
	Pin Hole and Aperture	4xφ11xPCD63xφ32
	Blade Speed	30-160rpm
	Spindle Motor	11KW(6P)
	Sawing Method	Horizontal sawing
	Cut Feed Mode	AC Servo Motor+Ball Screw /Swing Feed+Linear Guide
	Main Clamp Way	Hydraulic Type/Vertical and Horizontal Clamping of Each Group
Automatic Feeding Device	Feeding Drive Mode	AC Servo Motor+Ball Screw /Swing Feed+Linear Guide
	Feeding Clamp Way	Hydraulic Clamped
	Trim Length	10-99mm
	Remnant Length	80mm+α(α is less than cut off length)
	Single Feed Length	8-650mm
	Length of Material	4000-6000mm
	Supply Mode	Hydraulic Lifting
	Material Area	900mm
Hydraulic Device	Hydraulic Drive Motor	2.2KW(3HP)
	Hydraulic System Rated Pressure	5Mpa
	Hydraulic Oil Capacity	80L
Machine Size & Weight(rack included)	Size	7400*3300*1800mm
	Weight	4300kg
Other Equipment	Control Mode	Touch screen + buttons
	Saw Blade Deflection Shock Device	Tungsten Carbide Parallel Block
	Dispenser	Pneumatic, reciprocating
	Lubrication System	Timely Quantitative Forced to the Oil
	Chip Conveyor device	Chain Plate Type Auto Chip Conveyor
	Cooling System	lubrication cooling system
	LED Work Light	Waterproof and Dustproof
