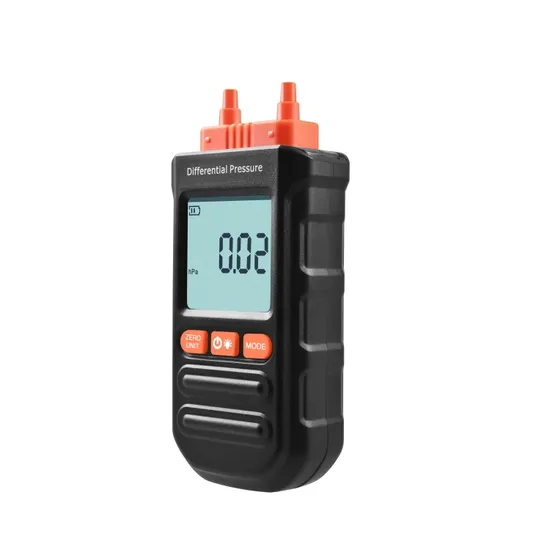

Yw-721 Dual Differential Input Manometer

Product Description

YW-721 Dual Differential Input Manometer Product Description
Specifications DESCRIPTION:
YW-721 is an instrument for pressure difference measurement. YW-721 is often used to measure the small pressure difference (such as detecting the permeability of the filter), air flow pressure, small suction force, and pitot tube gas flow rate measurement.

FEATURES: 12 pressure units Wind speed measurement Zero calibration and point calibration Data retention (HOLD) Difference mode supported Query the maximum and minimum values Display with backlight Automatic shut down Low power reminder

APPLICATIONS: HVAC system Pressure and wind speed of fan and blower Filter Laboratory Negative pressure cabin, room Pipeline gas pressure

Model	YW-721
Parameter	Pressure difference; wind speed
Sensor	Differential pressure sensor
Measuring Range	Pressure: 0~100 hPa
	0~45.15 inH2O
	Wind Speed: 10~100 m/s (medium density = air density = 1.29 kg/m3)
Accuracy	±0.03 hPa (0~0.30 hPa)
	±0.05 hPa (0.31~1.00 hPa)
	±(1.5% readings+0.1 hPa) Other ranges
	±0.01 inH2O (0~0.12 inH2O)
	±0.02 inH2O (0.13~0.40 inH2O)
	±(1.5% readings+0.04 inH2O) Other ranges
Resolution	0.01 hPa/0.01 inH2O
Calibration	Zero calibration; point calibration
Unit	Pressure: hPa, kPa, bar, mbar, psi, mmHg, mmH2O, inHg, inH2O, ftH2O, kgf/cm2, ozf/in2
	Wins speed: m/s, fpm
Pitot Tube Coefficient	1
Sample Interval	0.5 seconds
Operation Temperature	0~50ºC
Storage Temperature	-20~60ºC (without batteries)
Power Interface	Micro USB
Power Supply	3 pcs of 1.5V AAA alkaline batteries /1.2V AAA rechargeable batteries
Battery Life	About 90 hours (when backlight off)
Size	135*57*30mm
Case Material	ABS
Weight	About 90g (not including batteries)
Certificate	CE; ROHS
Warranty	12 months

Product Display

Company Profile
FAQ Q. Do you make custom products?
A. Yes, we offer OEM/ODM solutions for our clients.

Q. How long is your lead time for samples?
A. 5-7 days. For bulk orders, 10-30 days depending on the quantity.

Q. What is your terms of payment?
A. 100% for small orders. 30% in advance as deposit and 70% balance before the delivery.

Q. How can we pay?
A. You can pay via T/T, PayPal and Western Union.
