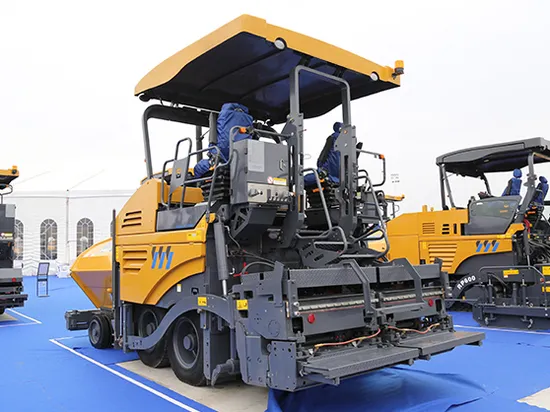

China Brand 6m Paver Width Asphalt Concrete Paver RP603

Product Description

China Brand 6M Paver Width Asphalt Concrete Paver RP603
Product Description
RP603 paver can be applied in the construction work of highway asphalt pavement of various grades for paving different types and gradations of asphalt concrete materials. It is especially suitable for urban construction, municipal maintenance and other projects. The machine incorporates full hydraulic drive and micro- computer control, providing more simple, faster operation experience.
Performance Characteristics:
1.Cum--mins turbocharged diesel engine, high power reserve and energy-saving effect.
2.Ensure the continuous efficient and stable work of the power system.
3.Allow real-time monitoring and automatic fault diagnosis of the whole vehicle.
4.The walking control utilizes the technology of constant speed automatic control to avoid the paving speed affected by load.
5.The material level can be controlled stably and the auger speed can be adjusted continuously.
6.Digital automatic leveling technology ensures high evenness, filling the requirements of high-grade road construction.
Product Parameters

ltem	Unit	RP603
Basic Pave Width	m	2.5~4.75
Maximum Pave Width	m	6
Maximum Layer Thickness	mm	350
Maximum Paving Speed	m/min	20
Maximum Travel Speed	km/h	3
Hopper Capacity	t	14
Maximum Laydown Rate	t/h	400
Engine and Type	-	QSB6.7-C170
Rated Power	kW/rpm	129/2200
Shipping Dimension (LxWxH)	mm	6680*2500*3180
Shipping Weight	t	18.5
Full Dimension (LxWxH)	mm	6680*2500*4000
Full Weight	t	19
