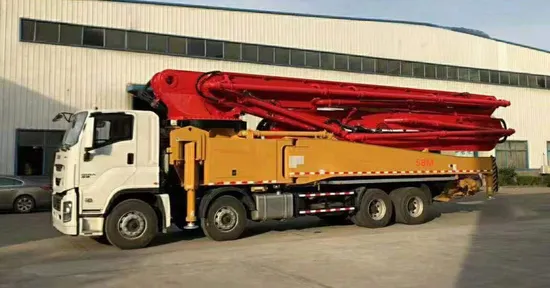

49m Pump Truck with Optional Chassis Truck Mounted Featuring Engine and Motor Core Components
| US$21,000.00-50,000.00 | 1 pcs (MOQ) |
Basic Info.
Type
Concrete Pump
Shotcrete Type
Semi-Dry
Machining Process
Hydraulic
Structure
Rotor Type
Productivity
180m²/h
Feeding Height
1370mm
Vibrating Amplitude
2.0mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Red
Usage
Concrete Pump Truck
Keywords
Mixer Truck
Place of Origin
Hunan, China
Industry
33 Meter Pump Truck
Transport Package
Customized
Specification
44meter
Trademark
no
Origin
China
HS Code
8705909100
Production Capacity
50000PCS/Year
Product Description
Product Description38 meter mixing integrated conveying pump truck source factory
we have model 33 m/38 m/ 44 m/ 47meter
About customized: yes, we can customized as customer require.
| pump truck 44 meter HB-44 | |||
| Vehicle parameters | vehicle size | L11500*W2550*H3980 | mm |
| weight | 33800kg | ||
| Arm support leg parameters | Vertical height of boom | 43.2 meter | |
| Horizontal length | 38.7meter | ||
| vertical depth | 30.6meter | ||
| Min. unfolded height | 12.6 meter | ||
| first arm | length (mm) | 8600 | |
| corner | 90° | ||
| second arm | length(mm) | 7050 | |
| corner | 180° | ||
| section 3 arm | length(mm) | 7050 | |
| corner | 180° | ||
| Section 4 Arm | length(mm) | 8200 | |
| corner | 196.5° | ||
| Section 5 Arm | length(mm) | 8300 | |
| corner | 229° | ||
| Rotation angle of turntable | ±270° | ||
| Pumping system parameters | Theoretical maximum conveying capacity | low pressure m3/h | 120/160 |
| pumping pressure | low pressure/high pressure Mpa | 8.2/12 | |
| Pumping frequency | low pressure Times/minute | 28/min. | |
| Inner diameter of conveying cylinder mm | 230/260*1650 | ||
| Main cylinder inner diameter mm | 140*1650 | ||
| hydraulic system | Open hydraulic system | ||
| System oil pressure Mpa | 32 | ||
| Fuel tank capacity L | 600 | ||
| Main configuration and model | main oil pump | Ningbo Heideke/German Rexroth | |
| Transfer case | Zhuzhou Gear Co/Stiebel | ||
| Arm pump | Ningbo Sikes/German Rexroth | ||
| Reducer | Italian R | ||
| multi-way valve | Ningbo Norm a/HAWE | ||
| remote control | |||
| Chassis parameters | Chassis brand and model | Dongfeng/Sinotruk | |
| Number of chassis bridges | three | ||
| Maximum net power of the engine KW/rpm | 400 horsepower | ||
| emission standard | national 6 | ||
| Fuel tank capacity L | 400 | ||
Packaging & Shipping
Company Profile
About us
The Feibo industry, a sourcing factory on construction machinery found in 2012, located in Hunan, Changsha city.
Have passed the ISO9001:2008, TSI16949 certificate ,CE , and so on.
Professional supply for mechanical equipment, Concrete pump, pump truck, fabric machine and some auto parts, accessories and so on, for more than 10 years.
Strict QC team over 10 members, covering whole stages of production running.
