PVC Plastic Powder Hot and Cold Mixer Unit Raw Material Mixing Machine

Product Description

PVC Plastic Powder Hot and Cold Mixer Unit Raw Material Mixing Machine
Product Description
1. It is used in mixing, drying, coloring and other industrial art, it is the ideal equipment for producing profile and pipe,all the extruding complete lines.
2. It is heating mixing has self-friction electric heating.
3. Two layers of sealing is adopted in the pot cover, pot cover of cooling machine adopts arch cover, which can avoid deforming
4. High Speed Pvc Hot And Cold Mixer has features of contact construction, good performance.
5. They have passed the test of dynamic balance and static equilibrium according to the national standard.
This machine adopts automatically design, its run flow as follow: Load materials into heat mixer by spiral loader → set material discharge temperature for heat mixer → auto discharge material into cool mixer when reach the set temperature
Of course, the cool mixer also can be controlled by temperature
Features and application
Application Examples:
1. In PVC pipe production, you need use high speed mixer to mix the PVC powder, CaCo3 and additives.2. in master batch (pigment) granulating production line, you need use high speed mixer to mix colorstuffs, fillers and additives.3. in modified plastics production, the first step is to use high speed to mix different materials to homogenization4. In activated CaCo3 production, you need to mix the CaCo3 and coupling agent to homogenization.
Technical parameters

parameter model	Total capacity	Effective capacity	Motor power	Spindle speed	Heating manner	Discharge manner
SRL-Z50/100	50/100	35/70	7/11/5.5	750/1500/180	Self-friction or electric heating	pneumatic
SRL-Z100/200	100/200	70/140	11/22/7.5	650/1300/150
SRL-Z200/500	200/500	140/250	30/42/11	550/110/90
SRL-Z300/600	300/600	210/420	40/55/11	475/950/90
SRL-Z500/1000	500/1000	350/700	47/67/15	430/860/60
SRL-Z800/1600	800/1600	560/110	60/90/22	370/740/50

Remarks:all information above is only for reference; please gather the exact data by contacting us.Picture For Reference

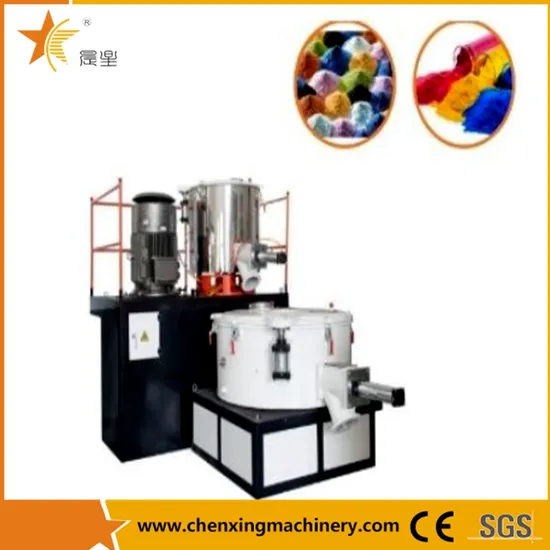

1.Machine Display:
2.Factory Display:3.Other Hot Sale Product Display:4.Package&Shipment:
Company Profile
Zhangjiagang City Chenxing Machinery Ltd. CO. was established in 2002, its predecessor is Zhangjiagang City Samsung Machinery Plastic Factory, focusing on the production of plastic machinery for more than 20 years. It is a progressive enterprise integrating new product development, product manufacturing, sales and trade in one.
The main products include: pipe, profile, sheet and pelletizing extrusion machinery, waste plastic recycling production machinery, and all kinds of auxiliary machines necessary in the process of plastic production, such as loading machines, mixers, formulators, grinding machines, mould temperature machines, chillers, etc.
We sincerely welcome customers at home and abroad to cooperate with us, and sincerely welcome to visit our company.
Chenxing is willing to work with you to create a future together.
FAQ
Our service:
1.Ability to provide the customized plastic extrusion solutions;
2.Complete sales system covering the pre-sales, sales and after service jobs;
3.Commissioning & installation service in customer plant 4.We can send you the video of the running machine. You are welcome to come to visit our factory,and see the machine running.
5.We can design the machines according your requirements(materil,power,color),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
FAQ:
Q:Where are the strengths of our company?
A: Our company regards "Integrity based, and customer oriented" as its business philosophy, and regards "set an example for the industry, and create excellent plastic machinery" as its business targets.
Also we have accumulated high-quality and stable suppliers, experienced technical team and first-class manufacturing team in the past over ten years.
Q: Why choose us?
A: we are the professional manufacture focus on Pipe Production Line/ PVC Machine For The Pipe Extrusion Line/ UPVC Pipe Production Line / CPVC Machine For The Pipe Production Line and etc...
Q: Do you have any other services about your products?
A: We have a lot of experience on making projects and specifications for our clients, also we have a fixed service system.
Q: What kind of certification do you have?
A:Our products have obtained ISO9001 and CE certification,the quality can be guaranteed.We focus on thefield of extrusion machine,and aim to be the best manufacturer of this field.
Q:What is the voltage?
A: 380V 50hz 3 phase or any other voltage according to client's requirement.
Questions for Buyers
Please offer the following information, so we can give you price and our advice as manufacturer:
1.The raw material of mix.
2.The capacity per hour.
3.What are your electrical requirements for the mixer?
4.The voltage.
CONTACT US:If you need to know more information about our company or our product,welcome to contact us and visit our factory!
Our company hope to cooperate with you to create a better future! !
