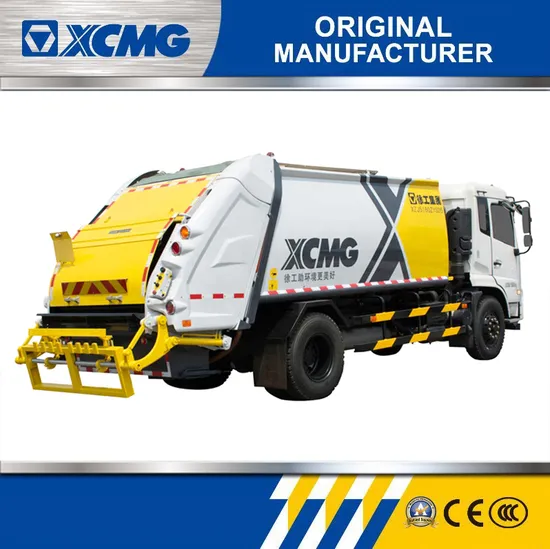

XCMG Official 6m3 Garbage Truck Xzj5070zysq5

Product Description

Product Description
XCMG Official 6m3 Garbage Truck Xzj5070zysq5 It is the preferential vehicle for garbage collection, compression and transportation, and single series can complete the whole process of collection and transportation. Full-sealing design is adopted and drain tank is elaborately set, which can realize automatic compression and unloading process and put an end to secondary pollution. It has wide applicable scope, and it is mainly used for garbage collection and transportation in residential quarters, streets and campus, etc. * High Compression Ratio, Fast Loading Speed
The design idea of bidirectional compression, XCMG high quality hydraulic system and advanced press -loading structure is adopted; it can guarantee that different garbage is uniformly covered by pressure, the whole container has no dead corner, gap or blockage phenomenon, which can make the garbage volume reduced by 66.67%. The garbage loading capacity is increased by about 20% under the same container volume condition.
* Reduce Noise, Eliminate Pollution
The manufacturing idea of"make green with green" is adopted to put an end to secondary pollution of any form. Cooperation with performed with domestic famous universities and colleges to strictly control the noise, letting residents enjoy a serene night. There are various sealing mechanism to lock the garbage and prevent leakage of gas and liquid, utterly solving the problem of secondary pollution during compression, loading and transportation.
* Intelligent Control, Comfortable Operation
Extend the nerve ending of product control system; wireless remote controller is optional for operation, realizing"zero contact" between operator and domestic garbage. Product Parameters

MODEL	XZJ5070ZYSQ5
Specification	Chassis Model	QL1070A5HAY
	Vehicle Model	3t
	Overall length	6365mm (no feeding device)
		750mm (tipping bucket)
		6645mm (bucket shape)
		6750mm (Swing arm)
	Overall Width	1950mm
	Overall Hight	2400mm
Weight	Total Weight	7300kg
	Curb Weight	4920 kg (no feeding device)
		5090 kg (tipping bucket)
		5040 kg (bucket shape)
		5040kg (Swing arm)
	Rated Payload	2250 kg(no feeding device)
		2080 kg (tipping bucket)
		2130 kg (bucket shape)
		2130kg (Swing arm)
Fitted parts specifications	The Volume of Carriage	6m3
	Fill Capacity	1.1m3
	Drain tank volume	130L
	loading cycle time	<16s<>
	The loading Angle of the loader	~95°
	Hydraulic system rated pressure	16MPa
Main materials and their proprietary components	Box side plate, bottom plate	Steel plate 3.5/Q460NH
	Push plate front plate, box top plate	Steel plate 2.5/Q460NH
	Push plate bottom plate	Steel plate 6/Q460NH
	Loader rail	Steel plate 18,10/Q390
	Filler hopper	Steel plate 6/WEI-TEN780RE (imported high-strength steel)
	Floor reinforcement beam	Steel plate 3.5/Q460

Product Picture <16s<> Company Profile
FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted.
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC.
3: What about the delivery time?
A: 7-30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
