Chengheng CE Certificate High Output 500-1000mm High Speed ABA/Ab ABA Plastic Extruder Machine Blow Film Machine

Product Description

Product Description

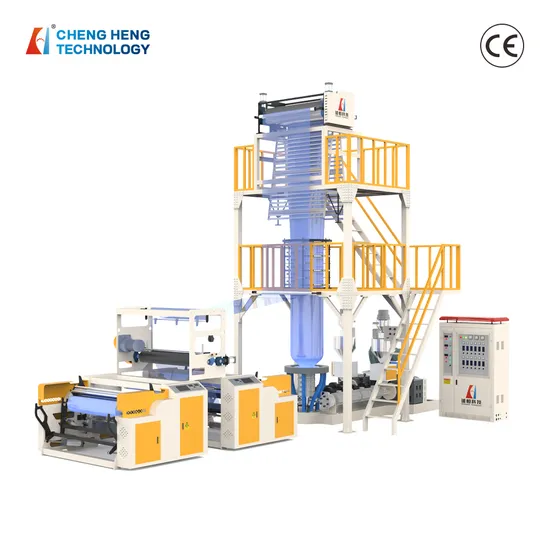

High Speed HD/LD Film Blowing Machine
The ABA film blowing machine adopt SACM 645 screw,and the screw L/D ratio adopt 32:1.All machine adopt super high speed screw with force feeding.ABA film blowing machine adopt three-layer co-extrusion technology,with recycled materials used in the middle layer to improve production efficiency and achieve resource recycling. Product Parameters

Model	50/50-1200	55/55-1400
Width of the film	500-1000mm	800-1200mm
Thickness of the film	HDPE:0.008-0.08mm LDPE:0.02-0.15mm
Output	40-160kg/h	40-200kg/h
	According to different width, thickness of film,die size and raw material characteristics to change
Raw material	HDPE/MDPE/LDPE/LLDPE/CACO3/RECYCLING
Diameter of screw	Φ50/50	Φ55/55
L/D ratio of screw	32:1 (With force feeding)
Gear box	173# *2	180# *2
Main motor	18.5kw*2	22kw*2
Die diameter	Φ100/250mm	Φ150/ 250mm

Detailed Photos
Optional Accessories
Company Profile
Hebei Chengheng Plastic Machinery Technology Co., Ltd. is located in Ningjin County, Hebei Province, one of China's plastic production and processing distribution centers. The transportation is very convenient.The company covers an area of 26,000 square meters. We have a modern intelligent operation workshop, specializing in the R&D and production and sales of biodegradable film blowing machines, ultra-high-speed intelligent film blowing machines, multi-layer co-extrusion intelligent film blowing machines and other plastic machinery.
Certifications
Packaging & Shipping
FAQ
Q: How about after-sales service? How long is the machine warranty?
A: We guarantee lifetime after-sale service once you bought our machine, you can call us or send us any questions about the machine.
Q: How long is your delivery time and how many machines can you produce per month?
A: Normally our film blowing machine will be delivered within 30 days after 100% testing .
Q: How long can your machine work continuously?
A: We advice the machine working 24 hours a day without stopping, which not only increases production but also saves energy.
Q: Does your factory need agents? What are the thresholds?
A: We need to recruit agents, welcome to inquire for more details.
Q: Where is your factory? How can I visit there?
A: We are located in Ningjin County, Hebei Province, one of China's plastic production and processing distribution centers. It only takes one hour by high-speed rail from Beijing and 2-3 hours by plane from Shanghai and Guangzhou.Warmly welcome domestic and foreign customers to visit us.
