Universal Vertical Milling Drilling Machine Price Zx7550cw
| US$2,200.00-3,500.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
ZX7550CW
Controlling Mode
Artificial
Automatic Grade
Automatic
Precision
High Precision
Certification
CE
Condition
New
Max.Drilling Diameter
50mm
Max.End Milling Width
100mm
Max.End Milling Diameter
25mm
Max.Boring Diameter
120mm
Max.Tapping Diameter
M16mm
Spindle Taper
ISO40
Overall Size
1280×1285×2080mm
Motor Power
1.5kw (H)/2.2kw (V)
Machine Weight
850/1000kgs
Spindle Travel
127mm
Transport Package
Wooden Case
Specification
ZX7550CW
Trademark
KY
Origin
China
Production Capacity
150-200 Sets /Month
Product Description
| Main technical parameters | ZX7550CW |
| Max.drilling diameter | 50mm |
| Max.end milling width | 100mm |
| Max.end milling diameter | 25mm |
| Max.boring diameter | 120mm |
| Max.tapping diameter | M16mm |
| Distance from spindle end face to table sueface | 50-350mm |
| Vertical spindle | |
| Spindle taper | ISO40 |
| Spindle speed number | 8 |
| Spindle speed range | 140 ~ 2100 rpm |
| Spindle travel | 127mm |
| Horizontal spindle | |
| Spindle taper | ISO40 |
| Spindle speed number | 9 |
| Spindle speed range | 70 ~ 2160 rpm |
| Table size | 800×240mm |
| Table stroke | 400×230mm |
| Overall size | 1280×1285×2080mm |
| Motor power | 1.5KW (H)/2.2KW (V) |
| Machine weight | 850/1000kgs |
| Diameter Screw | |
| X Axis | 25MM |
| Y Axis | 28MM |
| Z Axis | 30MM |

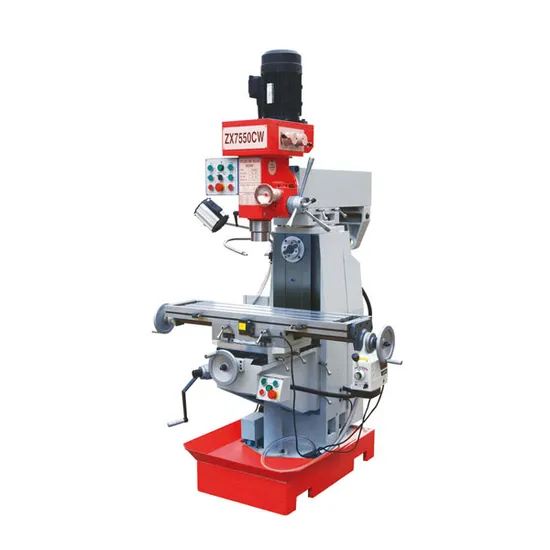

ZX7550CW , Drilling and Milling Machine
Features:
1. Use as milling machines and drill press
2. Easily shiftable gear drive high low two steps spindle speed.
3. Head swivels into the horizontal level on both sided 90 degree.
4. Manual fine-feed for the spindle quill
5. With horizontal milling spindle.
6. Wotktable can be swivel ±45 degree.
