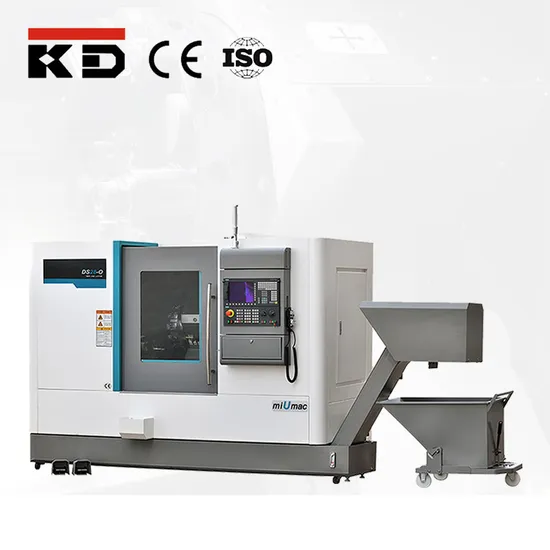

Single-Tool Holder CNC Lathe Machine with ISO 9001
| US$57,778.00-72,569.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
DS28-OH
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Max Swing Over Bed
520mm
Max Turning Diameter for Disc Parts
370mm
Max Turning Diameter for Sxle Parts
250mm
Spindle Bore
65mm
Spindle Nose
A2-6
Spindle Speed
4000/5000rpm
Tool Turret
12-Station German Live Turret
Main Motor
15/18.5kw
Rapid Feed
30m/Min
Chuck Size
Taiwan 8" Hydraulic Chuck
Transport Package
Wooden Pallets(Ht)
Specification
CE, ISO9001, SGS
Trademark
KD
Origin
Zhejiang China
HS Code
8458110000
Production Capacity
410 Sets/Year
Product Description
Single-Tool Holder CNC Lathe Machine with ISO 9001 Product FeaturesProduct Specifications
| MODELS | DS28-OH /500 | DS28-OH /1000 | DS28-OH /1500 |
| CAPACITY | | ||
| Max. swing over bed | Ф520mm | ||
| Max. cutting diameter for disc parts | Ф370mm | Ф370mm | Ф370mm |
| Max. cutting diameter for axle parts | Ф250mm | ||
| Max. cutting length | 420mm | 920mm | 1420mm |
| TRAVEL | | ||
| X travel | 255mm | 270mm | 270mm |
| Z travel | 540mm | 990mm | 1490mm |
| FEED | | ||
| Rapid feed speed of X/Z | 30/24m/min | ||
| Linear guide ways width of X/Z | 35/ 45mm | ||
| Ball screw of X | Ø32×10 mm | Ø32×10 mm | Ø32×10 mm |
| Ball screw of Z | Ø40×10 mm | Ø40×10 mm | Ø50×10 mm |
| SPINDLE | | ||
| Max. speed of spindle | 4000rpm | 2500rpm | 2500rpm |
| Spindle nose | A2-6 | A2-8 | A2-8 |
| Diameter of spindle bore | Ф65mm | Ф65mm | Ф80mm |
| Hydraulic chuck | 8″ | 10" | 10" |
| Spindle motor power | 15/18.5kw | 15/18.5kw | 15/18.5kw |
| LIVE TOOL | | ||
| Tool number | 12-T live turret | ||
| Live tool servo motor power | 2.2/3.7kw | ||
| Max speed of live tool | 5000rpm | ||
| Outside diameter of cutting tool shank | 20×20mm | ||
| Inner dia. of cutting tool shank | Ф32mm | ||
| TAILSTOCK | | ||
| Tailstock sleeve dia. | Ф80mm | ||
| Tailstock sleeve travel | 100mm | ||
| Taper hole of tailstock quill | M.T.No.4 | M.T.No.5 | M.T.No.5 |
| OTHERS | | ||
| Positioning accuracy of X/Z | ≤0.010/0.012mm | ||
| Repeated positioning accuracy | ≤0.003/0.005mm | ||
| Power of coolant pump | 180W | ||
| Capacity of lubrication pump | 2L | ||
| Bed structure | 45° slant bed integrated with stand | ||
| Overall dimensions(L×W×H) | 2880×1850×2000mm | 4800×1850×2000mm | 5300×1850×2000mm |
| Net weight | 4300kg | 5500kg | 6500kg |
