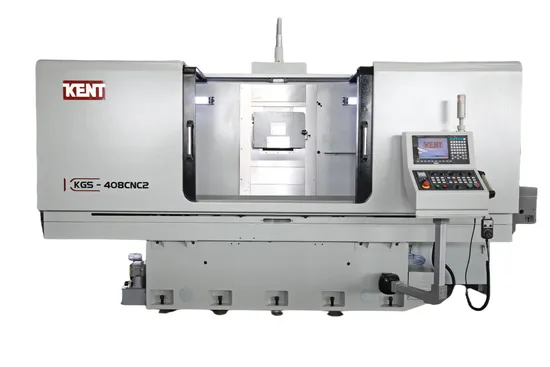

800*400mm 408CNC2 Professional High Precision 2 Axis Automatic Processing Hydraulic Pressure CNC Tool Equipment Surface Grinder Grinding Machine

Product Description

Product Description
CNC: Equipped with the advanced FANUC control system, our machine brilliantly integrates automatic grinding wheel dressing and an effortless batch workpiece automatic grinding function.
- High Rigidity Casting Body
Engineered with precision, our casting body undergoes thorough engineering simulation analysis (cosmos). The column and head feature a double-layer billet design, ensuring exceptional bending and torsion rigidity.
- Stable and Precise Three-Axis Guideway
The three axes boast C3 grade ball screws, SP grade high precision linear slides, and robust servo motors. The feed amount precision reaches an impressive 0.001.
- Automatic Lubrication System
Our automatic lubrication device enhances the lubrication of all transmission screws and sliding surfaces, featuring a self-detecting function. The level switch issues an alarm when the oil tank's liquid level drops to a predetermined point.
- High Rigidity Precision Spindle and Motor
Our spindles, meticulously crafted in our Jiande, Taiwan factory, from raw materials to final assembly in a temperature-controlled, dust-free environment, ensure minimal temperature changes, low noise, and zero vibration. The flange spindle design, paired with CP4 grade precision angled ball bearings, V3 grade low vibration motor, and dynamic balancing, guarantees spindle deflection well below 0.002mm, assuring years of problem-free service.
- Automatic Grinding Wheel Dressing Compensation Function
The table-mounted dresser, driven by a servo motor for dressing feed, features programmable or MPG feed amount, allowing for precise control.
- Intelligent Operation Design
Utilizing the FANUC control system, our intuitive touch screen allows easy setting of grinding variables, perfect for batch workpiece cycle processing. The machine supports various modes including general flat grinding, groove grinding, wide groove grinding, and high-efficiency grinding.
- Splash-Proof Box Design
Equipped with a fully-covered splash-proof box, our machine effectively contains grinding water and iron chips, preventing them from reaching the machine's rear. This design ensures both the cleanliness and the longevity of the machine's precision by shielding the slide rail from grinding liquid.
