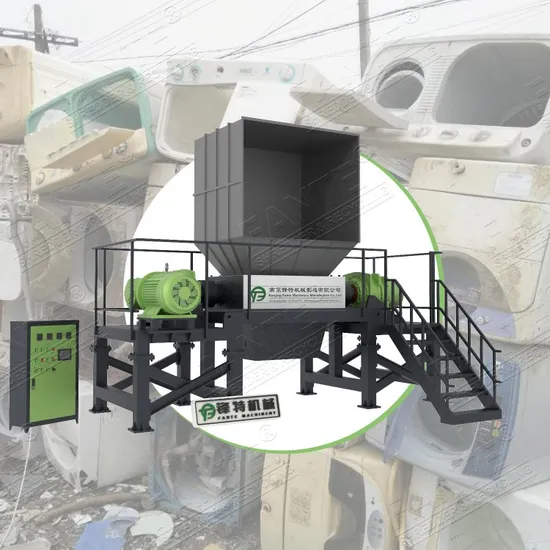

Industrial Waste Car Body Tire Recycling Two Shaft Shredder Machine for Recycling Scrap Metal, Plastic, Wood Pellet

Product Description

Model	FT2S-1000	FT2S-1500	FT2S-2000
Motor	22KW*2	55KW*2	90KW*2
Weight(KG)	5200	9000	20100
Tool size( mm)	Φ300*40	Φ550*50/75	Φ600*50/75
Number of tools( pcs)	24	30/20	40/26
Feed port size( mm)	1000*690	1500*850	2000*1490
Dimension (mm)	3300*1900*2200	2800*2800*2100	3000*2800*2100

Application Areas:
The shredder machine can easily pre-crush:
•plastic sheets;
•electronic waste;
•scrap (components, subassemblies; consumables);
•metals(lead, aluminum, copper, cable, barrels, sheet scrap, sheet metal pieces left over from production processes);
•aluminum cans;
•wood(wooden pallets or fruit boxes);
•plastic(plastic bottles or canisters);
•waste tire, rubber;
•waste household appliances;
•paper waste (cardboard, newspaper, office paper, books, magazine, kraft paper, paper core, cardboard tube, paper packaging
material);
•textiles (rags, garments, carpet);
•animal bones and organic waste.
Technical Features: 1. Our shredders can be employed as either a primary or secondary shredder and can be seen working anywhere from the waste management company to biofuel producers;
2. Dual shafted, slow-speed, high-torque waste shredder with hardened steel cutters;
3. The two cutting rotors powerfully grab the feed material, and no matter the feed material is large piece of hard plastic or heavy tires, this machine can easily shred them into small pieces;
4. Double shaft shredder is able to process a number of different materials; shredder is designed with a powerful engine, long working length and aggressive input, Internal feeding volume bigger than traditional and common single shaft shredder machine and allow you using forklift truck to feed.
5. Heavy structure: the frame and structure of our shredders are made of high-thickness sheets and tubular. Blades are manufactured from high quality steel, suitable for shredding tough materials and for extra long life;
6. Depending on requirement, these discs (blades) are available in a wide range of quantities, qualities and shapes with the new double-shaft shredder;
7. Any overloads caused by foreign material are sensed by the PLC controller and cause the shaft rotation to stop and reverse direction to clear the foreign matter, and then resume;
8.Cutters removal and replacement can be carried out safely and simply.
9. Our shredders Use a planetary reducer, not a traditional gearbox, and the planetary gearbox has the following advantages: High Efficiency, Greater Stability, Compact Size, Higher Torque Density, Cost Effective Precision, High Radial Loads.
10. Cooler system(optional) can maintain the temperature for continuous operation..
Applications:
Q&A:
Q:Are you a factory or a trade company?A:We are a manufacturer with our own factory,Welcome to take a visit!Q:How to choose a shredder machine?A:Our technical consulting services can help, recommend the most suitable machine and program according to your needs, capacity, site and other actual situation.Q:How about the service?A:We provide after-sales service, including on-site installation, commissioning equipment, guidance and training of operators etc. Make regular return visits to solve your equipment problems and optimize your equipment maintenance methods.Q:How long is your delivery time?A:Generally, it will be about 20-35 working days after deposit, which also will affected by the actual situation of the project.Q:Which trade terms is available?A:FOB, CFR,CIF, EXW and other terms based on your needs.
