Marking Printer Machine 30W 60W 100W 150W Fly CO2 Laser Printer on-Line for Wood/Food/Water/Matel

Product Description

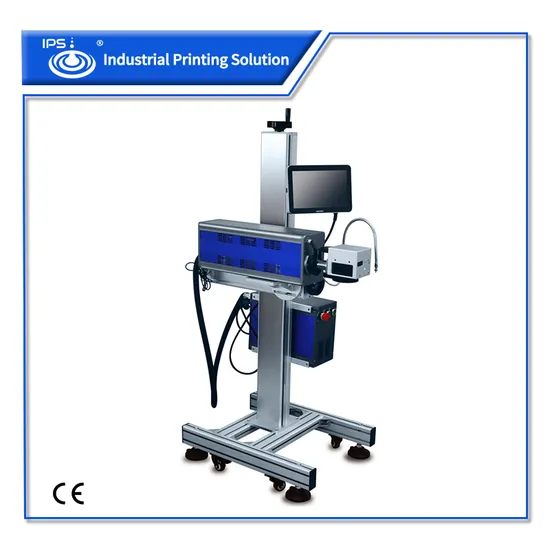

High Speed 30W Glass Date Fly CO2 Laser Marking Engraving Machine for Transparent Pet Water Bottle with CE
Support customized staring screen and logo, multiple language CO2 Laser marking machine is carbon dioxide laser marking. The active laser medium is a gas discharge which is air-cooled (water-cooled in higher power applications). The filling gas within the discharge tube consists of carbon dioxide and other auxiliary gas. Electron impact excites vibrational of molecule and produce a beam of infrared light with the principal wavelength bands centering on 10.6 micrometers.

Advantages of CO2 laser marking machine
1. Small size and easy to move. In a CO2 laser marking machine, almost all the accessories can be put in one cabinet. There are
even portable CO2 laser marking machine if the power is small (10Watt). It is very easy to carry.
2. High speed, high efficient, high precision, stable performance and no maintenance.
3. Easy operation. Those who can operate a computer can learn it easily.
4. Wide applications, can be used on most material.
5. Save cost, no need for consumables
Applications:
CO2 laser marking machine can mark on most non-metal material, such as bamboo, wood, paper, ABS/PVC epoxy resin, acrylic, leather, glass, ceramic, rubber and so on. It is widely used in pharmaceutical packaging, food packaging, beverage packaging, plastic, textile, leather, wood, handicrafts, electronic components, communications, watches, glasses, printing and other industries.
SPECIFICATIONS OF IPS-LC30W

Model	IPS-LC30W F
Laser Power	More than 30 watt
Laser Wavelength	10.64μm/9.3μm
Linear Speed	around 8000 mm/ s or more
Marking Size	75*75mm, 150*150mm, 200*200mm, 300*300mm
Min Linewidth	0.01 mm
Min Font Height	0.01 mm
Repetition Accuracy	+-0.002 mm
Overall Power	Less than 500 W
Power Supply	220V/50-60HZ/5A/1P
Laser Gun Brand	Synrad / CR/ DAWEI
Laser Gun Type	Carbon Dioxide Laser
Scanning System	Digital Scanning Galvanometer with high seep motor
Focus system	Two Red Light with accurate position
Cooling system	Built-in Air Cooling
Flying System	10.4 inch professional fly marking system based on Android
Weight	Around 75KG
Overall Dimension	57*66*155 CM
File Format Support	Support file from CORELDRAW,AUTOCAD,PHOTOSHOP directly. SupportAI,PLT,PCX,DXF,BMP file. Support all fonts from windows system. Support automatic coding, serial no, batch no, real time, variable barcode and QR code and databases.
Language support	English,Russian, Thailand, Korea ,Arabic ,Portuguese, etc
