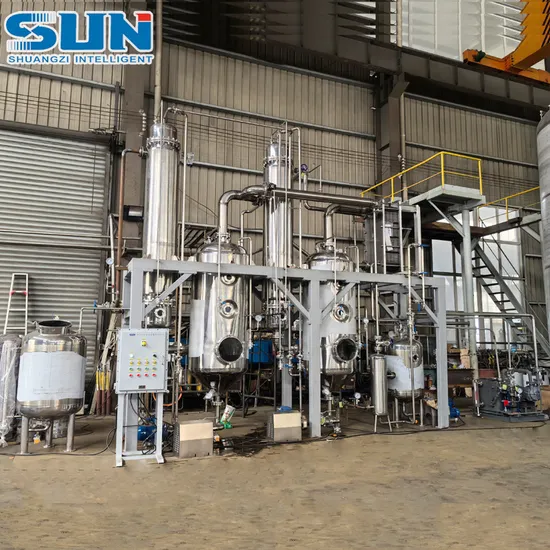

Stainless Steel Falling Film Evaporator for Fruit Juice Concentrate

Product Description

Stainless Steel Falling Film Evaporator For Fruit Juice Concentrate is made of twosingle effect falling film evaporator in series together, double effect falling film evaporator is the primary effect evaporator produced by the secondary steam as a heating source, introduced into another evaporator, as long as the pressure and melting boiling point in the evaporator are controlled, so that it is properly reduced, the secondary steam generated by the single-effect evaporator can be heated After the material is added by the upper part of the heating chamber, it is distributed by the liquid distributor and then flows down the tube in a film shape to be heated and vaporized. The vaporized steam and liquid are drawn out from the lower end of the heating tube together, and the concentrated liquid is obtained after the separation of gas and liquid Due to the short residence time of the material and high heat transfer coefficient, it is generally used to deal with heat-sensitive materials, and can also be used for materials with large evaporation viscosity, but it is not suitable to deal with the easy crystallization of the solution. Double Effect Fall Film Evaporator/Vacuum Concentrator For Juice/Camel Milk/Whey is suitable for the concentration of biochemistry, traditional Chinese herb, milk, juice, camel milk, goats milk, sheep milk,horse milk,flavoring, food additives etc.It is especially suitable for heat sensitive products.
Parameters:

Items		SJM2-800	SJM2-1200	SJM2-1600	SJM2-2000	SJM2-2500
Evaporation Capacity (kg/h)		600	800	1000	1200	1600
Product In Concentration % (Made to order)		11.5 ~ 12
Product Out Concentration %(Made to order)		45 ~ 48
Steam Pressure(MPa)		0.6 ~ 0.8
Steam Consumption (kg/h)		390	620	835	1020	1150
Dimension (L*W*H) m		4.5*2.3*7.1	4.5x2.3x7.6	4.5x2.4x8	4.5x2.4x8.5	4.7x2.5x8.5
Cooling Water Consumption (t/h)		6	9	12	15	18
Electric Total Power (KW)		18	18	25.5	25.5	31.5
Evaporating Temperature(ºC)	1st effect	70 (Can be designed according to customer's demand)
	2nd effect	45 (Can be designed according to customer's demand)
Heating Temperature(ºC)	1st effect	80
	2nd effect	70
