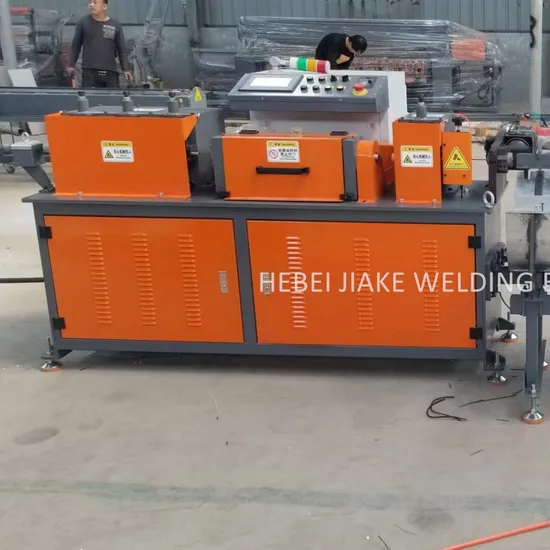

Wire Straightening and Cutting Machine 2.5-6mm
| US$8,000.00-10,000.00 | 1 SET (MOQ) |
Basic Info.
Model NO.
GT2.5-6mm
Usage
Sheet, Wire, H Beam Flange, Bar
Voltage
Customized
Automatic Grade
Customized
Principle
Large Deformation
Certification
CCC, ISO9001, CE
Warranty
24 Months
Customized
Customized
Condition
New
Wire Diameter
2.5-6mm
Wire Cutting Length
Max. 12 Meter
Speed
Max.120 M/Min
Cutting Motor
1.5kw
Transport Package
Plastic Film
Specification
CE/ISO9001
Trademark
DAPU
Origin
China
Packaging & Delivery
Package Size
900.00cm * 60.00cm * 120.00cm
Package Gross Weight
2500.000kg
Product Description
Technical parameter
| Model | GS2-3.5 | GS2.5-6 | GS3-8 | GS6-12 |
| Wire diameter | 2-3.5mm | 2.5-6 mm | 3-8mm | 6-12 mm |
| Speed (m/min) | Max.60-80m/min | Max.90-120m/min | Max.120m/min | Max.130m/min |
| Cut length | 500-3000mm | 500-6000mm | 700-6000mm | 1000-12000mm |
| Cut error | ±1mm | ±1mm | ±1mm | ±1mm |
| Straightening motor | 4kw | 7.5 kw | 11 kw | 22 kw |
| Overall dimension | 7.2*0.8*1m | 9×0.6×1.2m | 15×0.8×1.1m | 18×0.8×1.1m |
| Weight | 600Kgs | 2500Kgs | 3500Kgs | 5400Kgs |
Finished wire:
Round bar Rebar
Our Factory Hebei Jiake Welding Equipment Co., Ltd. It's the leading manufacturer of wire mesh machines in China and we always offer ADVANCED WIRE MESH TECHNOLOGY.
If you are looking for an Automatic Wire Mesh Welding Machine, please feel free to buy the quality automatic machine with a competitive price from our factory.
Excellent service is available in 24 hours.
