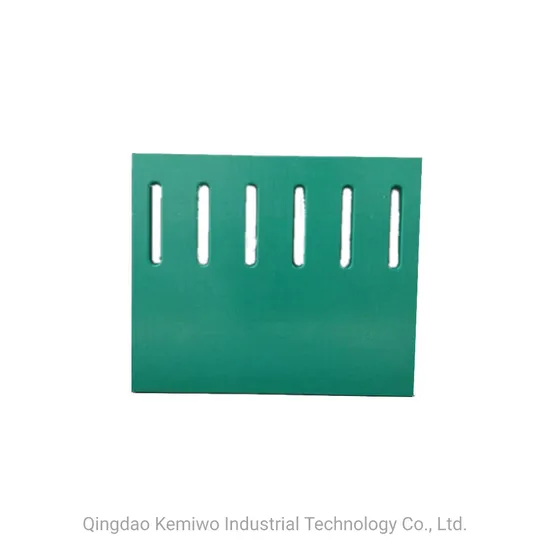

PP Panel Partition Pig Penning for Sow Crate with Window

Product Description

Product Description
With excellent chemical stability, the board is corrosion resistant, strong and hard, UV resistant (aging resistant), fire resistant and flame retardant (self-extinguishing), possessing reliable insulation performance, smooth surface, water-proof and no deformation, easy to process, etc.

Test report

Test Item	Property Index	Test Result	Monomial Conclusion
Apprearance	No shrinkage, no deformation, no burning, complete molding, no air bubbles	No shrinkage, no deformation, no burning, complete molding, no air bubbles	Qualitfied
	Color		Qualified
Loading Capacity	With the support spacing of 500mm, no damage under the force of 300kg of φ110mm disc on any point of the panel, whitened is acceptable.	No damage	Qualified
	With the support spacing of 1200mm, no damage under the force of 150kg of φ110mm disc on the panel welding point, whitened is acceptable.	No damage	Qualified
Length			Qualified
Sample Description	Standard type PP panel
Conclusion	Sample tested is qualified.
Remarks	The loading capacity of reinforced type PP panel is 400kg/200kg; the loading capacity of PP panle(1200*500*22mm fully enclosed) is 200kg/100kg.

Detailed Photos


Advantages

Antibacterial. The PP board don't breed bacteria, moreover it can inhibit the survival of bacteria. It is waterproof and moisture proof with smooth surface. PP boards for the wall of the pig house are convenient for washing, improving the disinfection effect, and preventing the generation of harmful substances. Convenient installation and low cost. The adoption of socket type or proprietary connection accessories greatly improves installation efficiency and saves time and effort. Painting and maintenance are not necessary, so the overall cost is lower. Thermal insulation. The PP hollow board for pig house has the characteristics of flame retardant, waterproof, acid and alkali resistance, corrosion resistance, light weight and heat preservation. Durability. Due to its special performance of insulation, the surface is strong and firm with excellent wind and impact resistance. In addition, this kind of pig house is resistant to high temperature, acid and alkali, corrosion, aging, non-fading, non-yellowing, non-flaking, non-cracking, non-foaming and non-worm-eaten with high comprehensive performance. The service life can last up to more than 30 years. Customized to meet different needs. Product Parameters

Model No.	Specification(mm)	Material	Thickness	Rib Thickness
KMWPP 01	1200*1000*50 Fully enclosed	PP	4.0mm	2.5mm
KMWPP 02	1200*1000*50 With window	PP	4.0mm	2.5mm
KMWPP 03	1200*1000*50 Fully enclosed	PP	4.0mm	2.5mm
KMWPP 04	1200*1000*50 With window	PP	4.0mm	2.5mm
KMWPP 05	1000*900*50 Fully enclosed	PP	4.0mm	2.5mm
KMWPP 06	1000*900*50 With window	PP	4.0mm	2.5mm
KMWPP 07	1000*850*50 Fully enclosed	PP	4.0mm	2.5mm
KMWPP 08	1000*850*50 With window	PP	4.0mm	2.5mm
KMWPP 09	900*1200*50 Fully enclosed	PP	4.0mm	2.5mm
KMWPP 10	900*1200*50 With window	PP	4.0mm	2.5mm
KMWPP 11	1200*500*22 Fully enclosed	PP	4.0mm	2.5mm

Company Profile
Located in Qingdao, the beautiful coastal city, Kemiwo covers an area of more than 30 mu, almost equal to 20, 000m2. The main business of Kemiwo includes design, production and installation of livestock& Poultry breeding equipment, involving metal, plastic and rubber products, etc. It is a modern comprehensive enterprise integrating R& D, production, processing, sales and trading.
Adhering to the motto of "integrity footed and innovation sighted", Kemiwo has been well received by customers for a long time due to its rich product categories, reliable quality and considerate after-sales service. Our products are distributed in more than 20 countries and regions such as Europe, America, Australia, Asia and Africa, etc. Moreover, we has formed strategic partnerships with many large modern breeding groups in Mainland China and Taiwan.
Through years of in-depth cooperation with major modern livestock breeding groups both at home and abroad, Kemiwo has accumulated rich experience in improving the variety and quality of products constantly. By increasing investment in product R& D and bringing forth the new through the old continuously, Kemiwo has acquired a number of national invention patents. Upholding the principle of customer first, Kemiwo always provides customers with private customized service, personalized products and more scientific& Practical livestock breeding equipment.
By offering the best made-in-China, the best quality products and the most considerate service to assist customers in achieving greater success, we sincerely look forward to conducting deep and sincere cooperation with more clients both at home and overseas.

FAQ

Q: Are you trading company or manufacturer?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 10-15 days if the goods are in stock. Or it is 30-45 days if the goods are not
in stock, it is according to quantity
Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample but not for free charge.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance
before shippment. If you have another question, pls feel free to contact us.
