Retractable Bleacher System/ Retractable Tribune / Gym Bleacher

Product Description

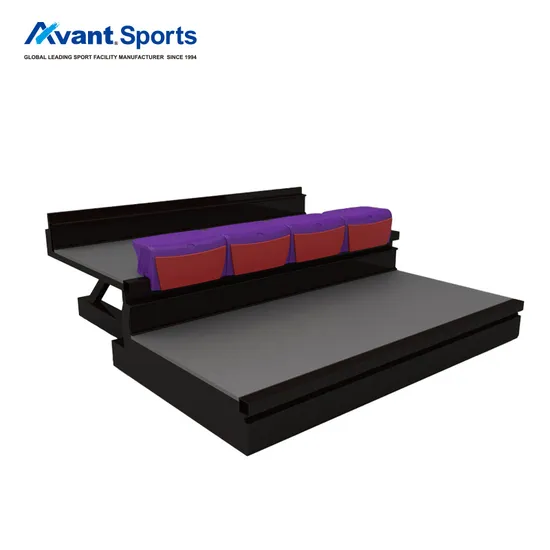

Introduction of the Retractable Bleacher System
1.The support structure of the stands adopts a slope support design, with an average distribution of viewing of the stands, and can make up to 30 rows of overall structures to meet the 5000N/m2 carrying requirements and meet European standards
2.The overall structure of the retractable bleacher is made of high light tension light steel
3. The front beam and the rear beam are integrally formed by rolling high-quality galvanized steel sheets, with reasonable cross-section and uniform load.
4.The safety guardrails of the retractable system are self-storing railing , the loading of which can achieve 3000N/M.
5.The decking of the retractable bleacher system is made of high quality plywood with anti-slip PVC surfacing
6.The four-wheel drive of the retractable bleacher system is very stable which can be work in harsh environments such as high temperature , humidity, dust and pollution.
7.The metal parts of the retractable bleacher system are treated with electrostatic powder coated after sandblasting to fully ensure that the anti-corrosive rust and anti-rust .
Product configuration

Max Rows	30rows
Operation Way	Electric operation / Manual operation
Decking surface treatment	PVC/ Wood grain /Carpet
Aisles	Plywood steps with aluminum alloy anti -slide strip and yellow PVC gum
Side Railing	self-storing side railing(straight side railing is optional)
Power Supply	380V
Side Curtain	PVC
Seat Model	VG-CY

Seat Configuration:1.Model:VG-CY
2.Dimension:Seat width452mm,Seat height 166mm,Seat depth 304mm,Seat c/c distance 457mm
3.Design description:
3.1.The seat is made of high-density polyethylene(HDPE) with blow molding craft. The design according to ergonomics, and its hollow structure makes the sitting sense more comfortable.
3.2.The seat bottom adopts steel brackets, no exposed metals on the seats, and all the angles of the seats has been rounded.
3.3.The rear of the seat adopts a depressed design to increase the space of the foot to fully ensure the comfort of those who sit in the back row.
3.4.A variety of seats colors are available , a customized pattern can be designed , and it is the only seat in the industry with puzzle function.Case Studies
