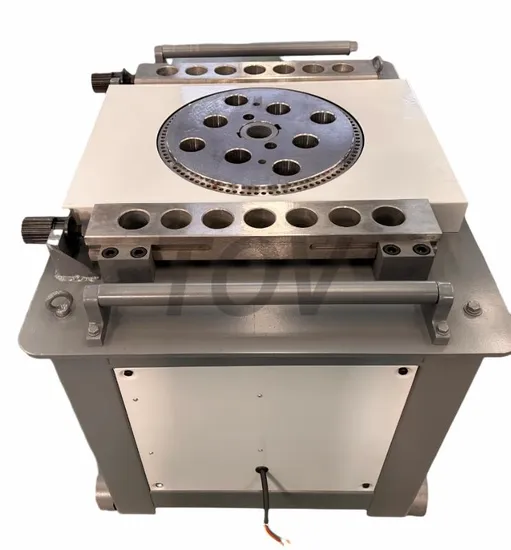

Construction 40mm Round Steel Bar Metal Rebar Bender CNC Sheet Wire Curve Iron Rebar Bending Machine One Year Warranty
Basic Info.
Model NO.
GW50A
Certification
RoHS, ISO 9001:2000, ISO 9001:2008, CE
Automation
Automatic
Suitable for
Carbon Steel, Stainless Steel, Rebar
Type
Rebar Bending Machine
Power
4kw
Round Bar
6-46mm
Rebar Diameter
6-42mm
Weight
370kg
Diameter of Disc
400mm
Voltage
220-440V 50/60Hz 1/3phase
Thickness of Table Board
10mm
Dimension
980*780*840mm
Transport Package
Wooden Case
Specification
1060*850*780mm
Trademark
Tov
Origin
China
HS Code
8462299000
Production Capacity
500 Sets/Month
Product Description
Product Description Steel bar bending machine is a tool used to bend rebar. Generally, there are automatic steel bar bending machine, CNC steel bar bending machine and semi-automatic steel bar bending machine. It is one of the indispensable equipment for steel bar processing.Product features
It is made of cast steel and quenched and forged many times. Solid weight, anti-wear and durable
Using Chint Electrical Appliances, the quality is guaranteed
The machine adopts excellent all-steel accessories, with strong bending and one button
This machine adopts thickened face plate, longterm thick steel bar is not easy to be damaged by pulling deformation, which is convenient for large steel bar processing
Product Parameters
| Type | GW-45 | GW-45A | GW-45B | GW-45PRO | GW-50 | GW-55 | GW-60 |
| power | 3KW | 3/4KW | 3KW | 4KW | 4KW | 5.5KW | 5.5KW |
| Diameter round bar | 6-40mm | 6-40mm | 6-40mm | 6-45mm | 6-50mm | 6-55mm | 6-60mm |
| Rebar diameter | 10-32mm | 10-32mm | 6-32mm | 6-36mm | 10-40mm | 10-40mm | 6-45mm |
| weight | 255 | 310 | 240 | 310 | 350 | 420 | 600 |
| Dimensions (mm) | 880*740*850 | 880*740*850 | 880*740*850 | 850*740*720 | 1000*850*780 | 900*900*850 | 1100*1000*1000 |
Applicantion
Company Profile
Packaging & Shipping
FAQ 1.Can you give me a preferential price? We welcome every customer who likes our project to give preferential prices. Please contact us immediately to obtain a quotation for the project selected for your project. 2.How about your quality control? We believe the quality is controlled through the whole process of order. Begin with detailed drawing and quality standard agreed by both party. Always a pre-production sample before mass production, Always final Inspection before shipment; 3.Do you have after-sale service? Yes. After order, we will start production quickly and keepupdated. After shipment, we will track the shipping and keep updated. After you receive machines, we will instruct the usages and maintenance. During usage, if any problems, we will offer timely and complete solutions. 4.Why choose us We are a machine
manufacturer with rich export experience. As a high-quality supplier, we have good customer relationships. We have a good reputation and provide you with high-quality, stable prices and high-quality services
