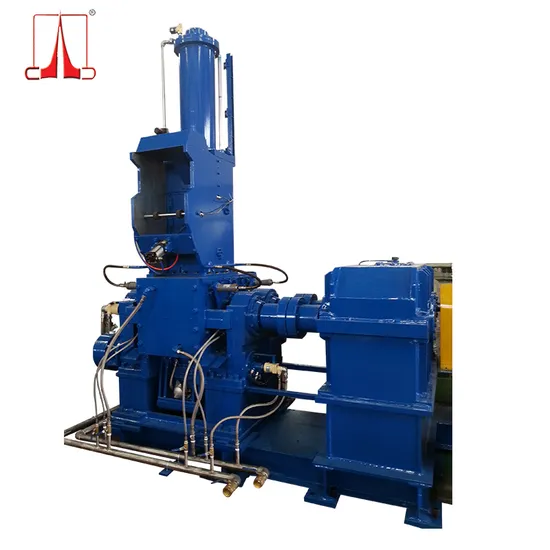

Low Price Automatic Style S-100L Plastic Banbury Mixer
Basic Info.
Model NO.
S-100L
Application
Liquid with Suspended Solids, Powder
Application Area
Plastic
Certification
CE, ISO
Condition
New
Cooling Method
Water Cooling
Heating Method
Thermal Oil Heating
Main Material
Alloy Steel
Mixing Capacity
50-99L
Mixing Drum Shape
Two Rotors
Speed Control
Variable Speed
Speed Range
30-39 R/min
Stirring Type
Forced
Working
Shear Mixer
Color
Green
Rotor Speed
40r/Min
Drum Pressure
0.6MPa
Total Volum
75-410L
Key Word
Plastic Internal Mixer
Rotor
Two Kinds
Brand
Lanhang
RAM
Hydraulic or Pneumatic
RAM Max Pressure
0.6MPa
Certificate
CE, ISO
Motor Brand
Siemens, ABB
Warrenty
1 Year
Mixer Type
Powder Mixer
Layout Type
Verticle
Operating Type
Continuous Operating
Transport Package
Film Packing
Specification
SGS
Trademark
LANHANG
Origin
China
HS Code
84778000
Production Capacity
50 Sets/Year
Product Description
1. PRODUCT NAme: Automatic style PP Plastic Banbury mixer2. KEY WORD: automatic PP Banbury mixer
3. Company Information:
We are one of the leaders of plastic machine manufacturer more than 20 years in China, and professional on internal mixer, mixing mill, calender, extruders and so on.?
We have branch office in Japan and take main market in Europe, and have around 10 customers in India.
Please check more information on our web: lanhang.en.made-in-china.com
4. Product information:
1) Application& Features
This machine is mainly used in the mixing of the plastic. The banbry mixer adopts the special structure of left, middle and right which is easy to maintenance.
2)Main techinical parameter
Project\Model | S-75L | S-100L | S-120L | S-160L |
| Working capacity of mixing chamber(L) | 75 | 100 | 120 | 160 |
| Rotating speed of rear rotor(r/min) | 1:1.17 | 1:1.17 | 1:1.17 | 1:1.17 |
| Main motor power(kw) | 160 | 220 | 300 | 400 |
| Pressed of compressed air(MPa) | 0.6 | 0.6 | 0.6 | 0.6 |
| Weight(t) | 20 | 22 | 28 | 32 |
5. Package and Shipping
1) Poly film
2) 75 working days
6. Machine list
No. | Item | Qty |
1 | Body | 1 set |
2 | Hydraulic hammer and cylinder | 1 set |
3 | Material feeding system | 1 set |
4 | Discharging system | 1 set |
5 | Driving system | 1 set |
6 | Electrical controlling system | 1 set |
7 | Hydraulic and lubrication system | 1 set |
8 | Equipped pipe | 1 set |
