Basic Info.
Application
Rice, Corn, Wheat, Soybean
Portable Harvester Type
Backpack Type
Certification
ISO9001:2008, CE
Application Field
Agriculture
Transport Package
Disassembled
Production Capacity
100 Sets/Month
Product Description
Product Description

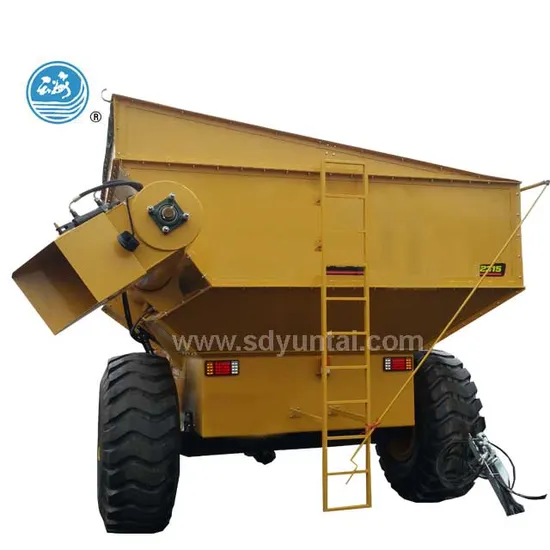

GRAIN CARTIt is used for rice transportation and automatic unloading. It uses a spiral conveyor instead of a self-dump and manual unloading. It is characterized by high operating efficiency and reasonable power utilization and can directly put rice into the warehouse. Mainly suitable for short-distance transportation in agriculture. The overall structure is reasonable, the appearance is beautiful, and it has the characteristics of convenient drag, saving time and labor and durable. The product adopts a combined structure of a transport vehicle and a spiral conveyor, and is equipped with a hydraulically adjusted conveying port, and the spiral conveying tube can be folded flat.
| Item | GC-20 |
| Capacity | 20Ton |
| No of wheel | 2 |
| Width (mm) | 5500 |
| Length(mm) | 6500 |
| Height(mm) | 5750 |
| Height of the load(mm) | 4000 |
| Discharge capacity of the grains(lt./min) | 3.5 |
| No. of axles | 1 |
| Tire Size | 26.5-2500 |
| Steel rim | |
| Max speed(km/h) | 35 |
| Linkage | Trailed |
| Weight(kg) | 4800 |
| Matched power (hp) | 100-150 |
