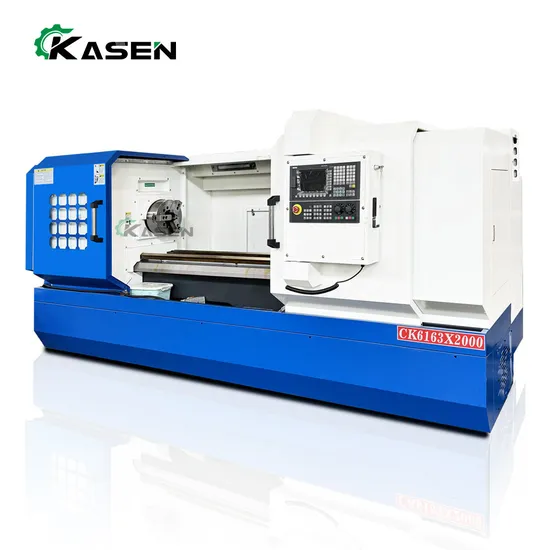

Made-in-China CNC Lathe Siemens Ck6163 Flat Bed CNC Lathe
Basic Info.
Model NO.
CK6163
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Mechanical Drive
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Spindle Motor
11kw
Tail Stock Sleeve Taper
Mt5
Thru-Hole of Spindle
105mm
Repeatability Error
0.01mm
Max.Swing Over Bed
630mm
Max.Work Piece Length
1000/1500/2000/3000/4000mm
Tool Size
32X32
Color
Customizable
Spindle Taper
Morse 6
Spindle Speed
17-1000rpm
Voltage
220V/380V
Positioning Accuracy
0.005mm
Repeatability (X/Y/Z)
0.003mm
Width of Bed
550 mm
Tool Post Stations
6/8
Transport Package
Plywood Wooden Box
Specification
3300*1750*1850mm
Trademark
Kasen
Origin
China
HS Code
8458110090
Production Capacity
100 Sets/Month
Packaging & Delivery
Package Size
330.00cm * 175.00cm * 185.00cm
Package Gross Weight
3700.000kg
Product Description
Made-in-China CNC Lathe Siemens CK6163 Flat Bed CNC LatheProduct Description
*Spindle with Japan NSK bearing and high speed
* Best igidity and stability Lathe body and guide
* the guide is treated by super audio quenching with high hardness,
* Feed of X.Z axis are driven by all screw with servo-motor
* Electronic hand wheel equipped easy operation.
* Can be free to choose CNC system
* Three gears and stepless speed change with lower noise and high standard machining accuracy;
* Three kinds of spindle bore can be choose (52/82/105mm) while the diameter of chuck is φ250mm and 325mm
Standard Configuration:550mm bed width,4 station electric tool postSpindle hole 105mmManual chuck, manual tailstockGSK control systemOptional configuration:Hydraulic chuck,Hydraulic tailstock,6/8 station electric turret,Siemens/ Fanuc control systemIndependent spindleServo main motor.Auto chip conveyor
Product Parameters
| SPECIFICATIONS | Units | CK6163 | CK6163 | CK6180 | CK6180 |
| Light weight | Heavy | Light weight | Heavy | ||
| Swing over bed | mm | 630 | 800 | ||
| Swing over cross slide | mm | 350 | 520 | ||
| Distance between centers | mm | 1000/1500/2000/3000/4000/5000/6000 | 1000/1500/2000/3000/4000/5000/6000 | ||
| Guideway width | mm | 550 | 550 | ||
| Max. load capacity | T | 3 | 3 | ||
| Spindle bore | mm | 105 | 105 | ||
| Spindle bore taper | - | Metric φ120/MT5 | Metric φ120/MT5 | ||
| Spindle nose type | - | C11 | C11 | ||
| Spindle speed steps | - | VF. 3 steps | HYD. 4 steps | VF. 3 steps | HYD. 4 steps |
| Spindle speed range | rpm | 10-1000 | 17-1000 | 10-1000 | 17-1000 |
| Chuck | mm | φ315 3-jaw manual | φ315 3-jaw manual | ||
| Turret/tool post | - | Electric 4 position | Electric 4 position | ||
| Tool size | mm | 32 x 32 | 32x32 | ||
| X axis travel | mm | 320 | 420 | ||
| Z axis travel | mm | 850/1350/1850/2850/3850/4850/5850 | 850/1350/1850/2850/3850/4850/5850 | ||
| X axis rapid traverse | mm/min | 4000 | 4000 | ||
| Z axis rapid traverse | mm/min | 6000 | 6000 | ||
| Tailstock quill diameter | mm | φ100 | φ100 | ||
| Tailstock quill taper | - | MT5 | MT5 | ||
| Tailstock quill travel | mm | 250 | 250 | ||
| Main spindle motor | kw | 11 | 11 | ||
| Coolant pump motor | kw | 0.125 | 0.125 | ||
| Weight for 1000 | kg | 3700 | 3900 | ||
| Weight for 1500 | kg | 4100 | 4300 | ||
| Weight for 2000 | kg | 4500 | 4700 | ||
| Weight for 3000 | kg | 5300 | 5500 | ||
| Weight for 4000 | kg | 6100 | 6300 | ||
| Dimension for 1000 | mm | 3300x1750x1850 | 3300x1850 x1900 | ||
| Dimension for 1500 | mm | 3800x1750x1850 | 3800x1850 x1900 | ||
| Dimension for 2000 | mm | 4300x1750x1850 | 4300x1850 x1900 | ||
| Dimension for 3000 | mm | 5300x1750x1850 | 5300x1850 x1900 | ||
| Dimension for 4000 | mm | 6300x1750x1850 | 6300x1850 x1900 | ||
Detailed Photos
Company Profile
FAQ
1. Who are we?
Our headquarters is located in Shandong, China. Since 2017, we have sold products to South Asia (70.00%), East Asia (20.00%) and Southeast Asia (10.00%). There are 101-200 people in our office.
2. How can we guarantee the quality?
Before mass production, there is always a pre production sample; Final inspection before shipment;
3. What can you buy from us?
Milling machine, CNC machining center, CNC machine tool, wire cutting machine,Laser cutting machine, etc.
4. Why should you buy from us instead of other suppliers?
The company has three factories in Chinese Mainland. From casting, processing to assembly, the whole production process is fully controlled, which is sufficient to ensure the quality of products.
5. What services can we provide?
Accepted delivery conditions: FOB, CIF;
Accepted payment currency: US, yuan;
Payment method: telegraphic transfer, letter of credit, D/P, D/A;
Languages: English, Chinese, Russian
