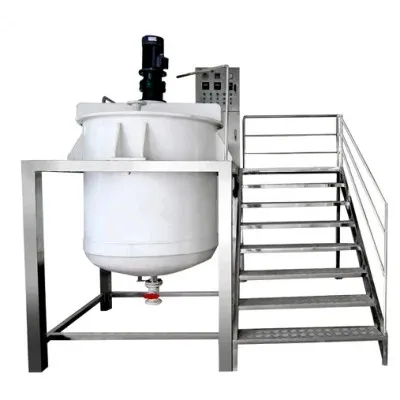

Fertilizers and Pesticides Dispenser, Automatic PVC Turbo Mixer 800

Product Description

Fertilizers and pesticides dispenser,automatic pvc turbo mixer 800
Product Application
This PP, PVC plastic mixer is mainly used in chemical, medicine, petroleum, and other industrial lines. It is specially for the strong causticity products. Such as the strong acid and alkaliand water for hair care product.
Performances and Features
1) The mixer pot is made of PP, PVC, plastic material. It is very hard to reaction with any chemical product. The stirring blade is made of enamel. This machine has explosion preventin motor. It is very easy to operate, light, also can anticorrosive.2) The work pressure≤-0.01Mpa, work temperature(PP):-10ºC~100ºC, PVC-10ºC~60ºC.Latest Research and DevelopmentDuring the production of liquid washing products,the self-suction type AES dissolver can alleviate worker's labor intensity of feeding and shorten dissolving time.
Maintenance Guidence
1. Keep the equipment looks clean, no watermarks, smooth.
2. Keep equipment clean, after finished product should be cleaned with hot water as soon as possible.
3. Check on the stirring blade usually, Are there loose screws.
4. Check the mixing gear regularly adequacy of the grease, any abnormal sound.
Technical Parameters

Capacity (L)	Tank Body Diameter (mm)	Tank Body Height (From the lid to Bottom) (mm)	Outlet Diameter (mm)	Stirring Power (kw)	Stirring Speed (r/min)
400	800	1050	50	1.5	0-63
800	800	1340	50	2.2	0-63
1000	1000	1550	50	3.0	0-63
2000	1200	2000	50	4.0	0-63
3000	1650	2300	63	5.5	0-63
5000	1800	2500	63	7.5	0-63

Detailed Images
Mixer,AgitatorMaterial: EnamelPower: 0.37-22kwMixing Speed: 0-63RPM, Frequency controlOriginal: ChinaLatest research and development:During the production of liquid washing products, the self-suction type AES dissolver can alleviate worker's labor intensity of feeding and shorten dissolving time.Non residual, Angle of outlet suitable for products dischage easily. fast connection with pipes and pumps.
Easy to operate, anticorrosive.Bottom DischargeMaterial: PVCOutlet Diameter: 50mm,63mmOriginal: ChinaStirring Motor
Brand: Siemens
Power: 0.37-22kw
Voltage: 220/380V,50/60HZ
Explosion proof motor, easy to operate, anticorrosive.
Our other products Photos
Company introduce :Guangzhou Scmixer is a large-scale company specialized in design, manufacturing, installation and commissioning of daily chemical, chemical, food and pharmaceutical machinery, as well as water treatment equipment. With powerful technical strength, complete inspection facilities, unique and advanced technique as well as great varieties of products, the enterprise strictly implements ISO9001 standard management.
RFQ:1. Q: Are you a manufacturer or just a trading company? A: Guangzhou Scmxier machinery Technology Co.,Ltd is one of the top technology-oriented machinery manufacturer in China. 2. Q: I am new in this field , can you recommend the whole production line? A: We can recommend you the whole production line depends on what products you will make: (1). If for paste or cream product, the following machine we will recommend you: RO water treatment equipment → Vacuum homogenizer → Storage tank → Paste filling machine or Heating mixing filling machine → Capping machine → Labeling machine → Inkjet printer → Shrink film packing machine etc., (2). If for liquid product, the following machine we will recommend you: RO water treatment equipment → Blending tank → Storage tank → Liquid filling machine → Capping machine → Labeling machine → Inkjet printer → Shrink film packing machine etc., (3). If for Perfume, the following machine we will recommend you: RO water treatment equipment → Perfume making machine → Perfume storage tank → Perfume filling machine → Perfume crimping machine → Perfume collar machine → Inkjet printer → Shrink film packing machine etc., (4). There are Full automatic production line and Semi automatic production line for your option.3. Q: What is your payment term? A: We usually pay by T/T., 40% deposit after sales confirmation, 60%before delivery.4. Q: What is your delivery day? A: Our delivery day is about 15-30 days after receive the deposit.5.Do you have requirement of capacity?
A: We can offer capacity from 10-5000L
