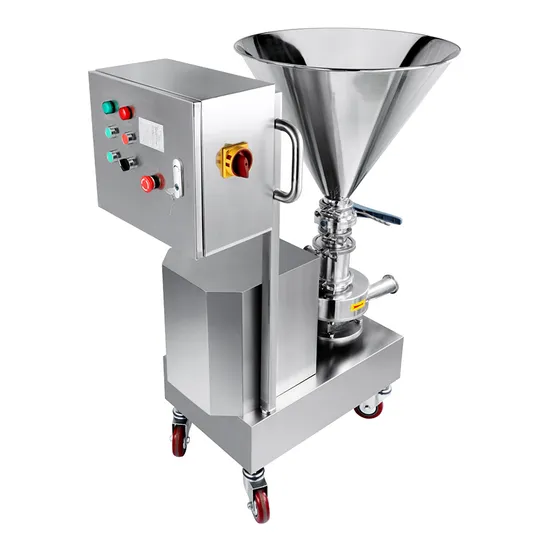

Ss 316L Solid Liquid Mixing Beverage Pump with ABB Motor
| US$2,000.00-5,025.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HHQ
Certification
3A, FDA
Condition
New
Mixing Drum Shape
Conical
Stirring Type
Spiral
Motor Power
3.0kw-15kw
Max. Flow Rate
60m3/H
Gasket
EPDM (FDA 177.2600)
Surface Finish
Ra0.8um
Connection
Clamped, Threaded, Flanged etc.
Voltage
110V, 220V, 380V
Motor Frequency
50Hz, 60Hz
Material
Ss 316L
Mixer Type
Agitator
Operating Type
Continuous Operating
Transport Package
Plywood Case
Specification
HHQ-10~60
Trademark
DONJOY & OEM
Origin
Wenzhou, Zhejiang, China
HS Code
8413709990
Production Capacity
200PCS/Month
Product Description
Ss 316L Solid Liquid Mixing Beverage Pump With ABB MotorHHQ series mixing pump is for mixing solid or powder into the liquid. It provides on-line perfect processing solutions for milk powder compounding, syrup making and brine making etc. It also can be used for preparing solid and powder mixing, in the industries of food and beverage, biopharmacy, traditional Chinese medicine making, cosmetics and chemicals.
ADVANTAGE
Solutions for emulsifying, mixing, adjusting, multi-tasking, powder and liquid mixing.
SPECIFICATION
| Product Name: | Mixing Pump |
| Valve Body Material: | SS304/SS316L/1.4301/1.4404 |
| Max. Flow: | 60m3/H |
| Seal material | EPDM (Standard, FDA approval) |
| Max. hopper volume: | 65L |
| Max solid suction volume: | 9000kg/h |
| Mechanical seal: | SIC/SiC/EPDM(Standard) |
| Motor power: | 3KW~15KW |
| Sealing option: | Single mechanical seal/Double mechanical seal with cooling system |
| Voltage: | 110V, 220V, 380V |
| Motor: | ABB |
| Surface treatment: | 0.8/0.6/0.4 micrometer |
| Connection way: | Clamped, Threaded, Flanged etc. |
| Standard: | DIN, SMS, 3A, RJT, ISO, IDF |
| Operated: | Electic |
| Option: | Manual valve or pneumatic valve, trolley, control panel |
| Certificate: | 3-A-02-10(N.O.1579), MD/06/42-EC(NO.70521616101-00), FDA 177.2600 |
| Application scope: | Dairy, food, beverage, pharmacy, cosmetic etc |
| Packaging Details: | Plywood case |
