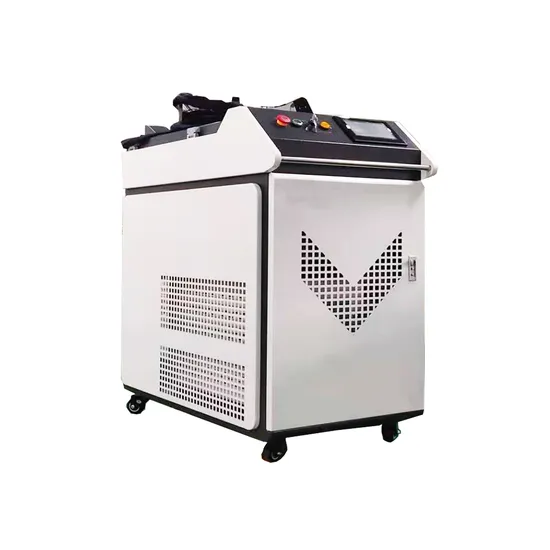

Portable Laser Welder 1000W 1500W 2000W Handle Laser Welding Machine for Metal

Product Description

Portable Laser Welder 1000W 1500W 2000W Handle Laser Welding Machine for Metal Product Description
FIRMCNC Brand laser welding machine 1000W, 1500W, 2000W, 3000W for choose.
Adopts integrated design, compact and beautiful structure, and has the characteristics of good beam pattern, stable energy, stable performance, reliable use, fast welding speed, wide welding range, long service life of consumables and consumables, etc. In the various parameters of mass production, the key parameters can be adjusted and the data display closed-loop can be achieved from the details.
FIRMCNC Laser Welding Machine Advantage:
#Hand-held operation welding, flexible and convenient, can be welded in any shape and at any angle;
#The device is small and easy to move. It is not only convenient for long-distance welding of large workpieces, but also outdoor welding;
#Simple operation, easy to use, no need for professional welders;
The welding speed is fast, and the efficiency is more than 5 times that of arc welding;
#The welding seam is beautiful and the deformation is small, saving the cost of subsequent grinding and shaping;
Performance characteristics
# It is suitable for welding of various metal materials, such as carbon steel, stainless steel, high-strength steel, aluminum, copper and alloy materials;
# It can emit light continuously or by pulse, which can realize not only thermal conduction welding, but also continuous deep penetration welding.
It can realize spot welding, butt welding, stitch welding, sealing welding, seam welding, etc.
# Using continuous fiber laser, excellent beam quality, maintenance-free, photoelectric conversion efficiency greater than 25%, pump source service life greater than 100,000 hours;

Performance characteristics
# Fast processing speed;
# Small thermal deformation and heat affected zone (suitable for processing high melting point, high hardness, special materials);
# It can process complex-shaped parts and tiny parts, and can also process in vacuum;
# Combined with automation mechanisms such as robotic arms, it can realize the automation of processing;
# It can realize wire filling welding, and can improve the existing product structure and material due to the advanced processing method.
FIRMCNC Laser Cleaning Machine Technical specification:

Model	FMH-1000W	FMH-1500W	FMH-2000W
Laser type	Laser Welding Machine
Rated output power	1000W	1500W	2000W
Power adjustment range	10%~100%
Laser center wavelength	1080±3nm
Output method	Continuous / Modulation
Maximum modulation frequency	50kHz
Power instability	<3%
Optical output interface	QBH
Indication system	Red light
Fiber core	20μm	30μm	50μm
Fiber length	15mm
Welding torch cable length	10m
Torch type	Left and right swinging galvanometer welding head
Collimated focal length	50mm
Focus focal length	80mm/120mm
Wire diameter	0.8,1.0,1.2,1.6
Welding gun weight	1.1kg
Protective gas method	Coaxial protection
Weld width adjustable	0~6 mm
Water flow	>12L/min	>15L/min	>25L/min
Product structure	All-in-one
Size L*W*H	1200*600*1300mm		1200*600*1300mm 680*590*1140mm
Weight	160KG		250KG
Working temperature	10~40ºC
Working environment humidity	<70%
Operating Voltage	Single 220VAC		3P 380VAC 1P 220VAC
Total power	<5kw	<7kw	<9kw

Main parts and samples
FIRMCNC Laser Welder Head Technical Parameters:
Interface type: QBH Laser incidence mode: coaxial
Laser power: 2000W Laser wavelength range: 1080±20
Collimation focal length: 50mm Focusing focal length: 300mm±20mm
Shielding gas: coaxial Weight: 0.8kg Adjustable width: 0-150mm
Language switching: set the system language mode
Support Chinese, English, Russian, Japanese, Spanish, German, Korean, French, etc.
Wire feeder
The control pannel can Support Chinese, English, French, German, Spanish, Portuguese etc.
Weight: 17KG Specifications: 56cmx24cmx42cm
Service life: 100,000 hours Warranty period: 2 years
The continuous fiber laser is a high-efficiency, high-reliability, maintenance-free high-power laser. It adopts water cooling and has a wavelength range of 1080 nm.
The design and testing of the product have fully considered safety.

Parts	Description	Remark
Laser generator	Continuous fiber lasers. Center wavelength 1080±3nm	Raycus/ MAX
Transmission fiber	15m flexible optical fiber, QBH interface	Raycus/ MAX
Wire filler swing welding head	Ultra-light and compact, the light spot swings left and right, and has the function of safety loop trigger protection. with wire feeder	Super Weiye
Wire feed system	Patent design	Super Weiye
Control System	Chinese and English operation interface, touch screen control	Super Weiye
Chassis	One-piece design with swivel casters	FIRMCNC
Chiller	Special water cooler for fiber laser	Han Li
Wire feeder	Intelligent control system	Super Weiye

FIRMCNC laser welding machine samples
Laser welding machine Materials
Welding in thin aluminum,stainless-steel sheet, iron sheet, galvanized sheet and other metal materials can perfectly replace the traditional argon arc welding, electric weldng and other processes.
Laser welding machine Application
Widely used in cabinets, kitchen, staircase elevator, shelf, oven, stainless steel door and window guardrail, distribution box, stainless steel home and other industries complex and irregular welding procedures. Company Profile
