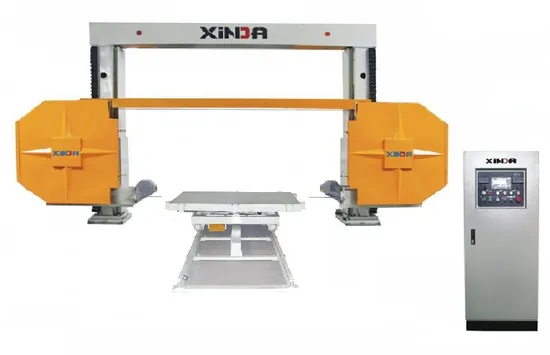

KXJ1500(with rotating table) Block cutting Machine

Product Description

Function:The machine is used for cutting slabs and squaring block.
Brief introduction of KXJ1500 wire saw machine:
1,KXJ1500 machine has steady structure, including a crossbeam,two upright column,square box,air compressor tensioning unit,two big flywheel. Left side install a driven big flywheel and air compressor tensioning device. tensioning device controls diamond wire tension or loosen, meanwhile keep the diamond wire pressure. Right side install a driving flywheel and main motor, it can control the speed of wire between 0-35m/s via inverter. the machine can cut different kind of stone material.
2,In order to reduce the diamond wire wear and keep the diamond wire steady , the machine are equiped with two guide wheels (Diameter: 300mm).
3. Trolley move by Screw rod. Screw rod is soaked with oil in the protective cover of screw rod(Patent product).
4. The machine will stop automatically and display failures on the screen if wire broken.
5.The machine has a water spray system. if no water or not enough water,the machine will automatically stop.
Technical parameters:

Parameters	KXJ1500
Diameter of Wire	Φ8-Φ11
Length of Wire	17300mm
Speed of Wire	0-40m/s
Worktable Size	3000×2000mm
Worktable Whether Revolve	360°
Worktable Load Capacity	20T
Range of Cutter Movement	1600mm
Max Cutting Size(L×W×H)	3500×2000×1500mm
Production Efficiency	1-2m²/h(marble) 0.5-2m²/h(granite)
Main Motor Power	11KW
Water Consumption	3m³/hour
Overall Dimension	8200×5700×4300mm
Diameter of Guide Wheel	Φ300mm
Total Power	23.94KW
Total Weight	9T

Electric Cabinet& Operation Panel Photos :
Exhibition:
FAQS:
1) Payment:
30% of total value (down payment)for placing an order, we start to produce the machine→70% (balance payment)before loading the machine to container
2) Delivery time:
The wire saw machine can be shipped within 15 weekdays when received down payment.
3) Guarantee period:
The machine is guaranteed for one year. The man-made accident and the Lightning , Flood ,earthquake , wrong voltage are not covered by the warranty.
4)How about our service?
1.Six engineers are special for installation service for oversea customer. If customer needs our installation service,we are available to dispatch any time.
2. Technical Support 24 hour on line.
