Thailand Wheat Milk Powder Mixing Tank

Product Description

Spanish fruit wine stainless steel electric heating 500L mixing tank The price is for reference only. The actual price is subject to the communication between the two parties!!!
Glue heating mixing tank, electric steam heating reaction tank, liquid storage tank, fermentation tank, vacuum defoaming reaction tank
Due to the diversity of manufacturers' product models, materials, and specifications, the prices on this website are for reference. The specific actual price needs to be determined after communication between the customer and our company's relevant personnel. The actual product price is determined by the actual material and specifications used.

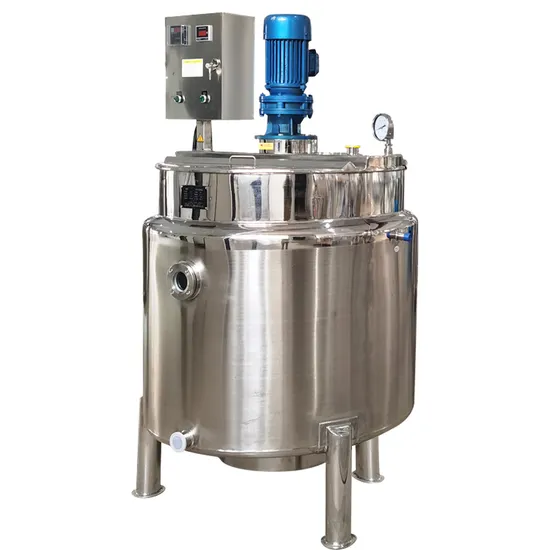

The liquid stirring tank (also known as the reaction kettle) is customized according to customer requirements. Here is a brief introduction: it is composed of stainless steel tank body, stainless steel upper cover, mixer, support, transmission device, shaft sealing device, etc. The stirring tank body and cover can be connected by welding or flange sealing; We can open process pipe holes such as feed, discharge, sight glass, temperature measurement, liquid level, pressure measurement, steam fractionation, vent valve, etc. according to customer requirements. The cycloid reducer is driven by an electric motor, and then the agitator in the mixing tank is driven by a transmission shaft to fully mix the materials; Various forms such as atmospheric pressure flat cover, mechanical seal type, and labyrinth seal can be selected according to requirements. Due to different production processes of users, the mixer forms include: frame type, anchor type, paddle type, spiral type, high-speed dispersion plate, high shear emulsification type, etc;
The mixing device of the reaction kettle/mixing tank: the top center is stirred, and the output shaft of the reducer is connected to the mixing paddle shaft using a looper, making it convenient for disassembly and cleaning. Mixing speed: 15-120r/min (constant speed); Mixing paddle form: frame type, anchor type, paddle type, turbine type, etc. (according to process requirements). Support foot form: round tube type or suspended support ear type. Equipment configuration: electrical control box, temperature controller, material inlet and outlet, medium inlet and outlet (oil inlet and outlet), vent port (oil overflow hole), etc. Tank material: Inner tank SUS304 or SUS316L; The jacket is Q235-B or SUS304; The outer protective shell is SUS304.

Model	Work capacity(L)	Stirring power(KW)	Stirring speed(R/MIN)	Working pressure
HZY-300L	300	0.75	36	Atmospheric pressure
HZY-500L	500	0.75	36	Atmospheric pressure
HZY-1000L	1000	1.5	36	Atmospheric pressure
HZY-1500L	1500	1.5	36	Atmospheric pressure
HZY-2000L	2000	2.2	36	Atmospheric pressure

Shenyang Huazhiyi Machinery is a manufacturer that develops and produces various general equipment.
The company's main products are: mixers, packaging machines, filling machines, conveyors, reactors, dehydrators, crushers, etc.Our philosophy is:integrity-based, strength first, and serve customers wholeheartedly.
Q. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.Other payment terms can also be negotiated.
Q. How about your delivery time?
A: Generally, it will take 10 to 45 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q. Can you produce according to the samples?
A: Yes, we can produce molde by your samples or technicaldrawings.
Q. Do you test all your machines before delivery?
A: Yes, we have 100% tested before delivery.
