Jbs40-Js500 Concrete Mixer Pump with Mixing and Pumping Function
| US$20,000.00-90,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
JBS40
Structure
High Quality Steel
Productivity
35m²/h
Feeding Height
1500mm
Certification
ISO9001: 2000, CE
Condition
New
Color
on Request
Power
45kw
Theoretic Output
30m3/H
Engine
380V/50Hz
Theoretic Outlet Pressure
8MPa
Theoretic Delivery Height
120m
Theoretic Delivery Distance
5000m
Max Pressure
8MPa
Hopper Volume
350L
Distribution Valve Type
S Pipe Valve
Concrete Cylinder Spec.
200X1000
Transport Package
40hq
Specification
ISO certification
Trademark
FOCUS
Origin
Zhengzhou, China
HS Code
84134000
Production Capacity
60sets Per Month
Product Description
Concrete mixer with pump/ concrete pump with mixer for sale1. Application of concrete mixer with pump / concrete pump mixer:
Group building, bridges, and the small construction projects, 4-6 floors building.
2. Main Features of concrete mixer with pump / concrete pump mixer:
1) New combination of concrete pump and concrete mixer.
2) Double cylinder hydraulic pumping system, hydraulic system greatly enhance the the stirring
Concrete pump overall reliability ensure pump strive foolproof work under harsh conditions
3)The pump construction operation system used in all automated, all material mixing, high pressure pumping.
Video:https://micfocus.en.made-in-china.com
Mixing system and Pumping system of concrete mixer with pump / concrete pump mixer
Mixing system:
Double motors for mixer mixing with features of quick and homogeneous mixing.
Grinding wheels for mixing drum rotation, stable and reliable.
Vibrating device for aggregate complete discharging.
Pumping system:
Fully hydraulic pumping system with double concrete cylinders and double oil cylinders, stable and reliable.
Hydraulic parts are famous brands from home and aboard with high and reliable quality.
Parameter of concrete pump with mixer:
| Model Parameter | JBS30-10-37 | JBS30-10-66R | JBS40-10-45 | JBS40-10-82R | JBS40-10-84R | JBS40B-JS500 | JBS40B-JS750 | JBS40B-JS500-129R | JBS40B-JS750-129R |
| Engine power | Electric, 37kw | Weifang diesel engine, 66kw | Electric, 45kw | WEICHAI diesel engine, 84kw | Weifang diesel engine, 84kw | Electric, 18.5+5.5kw | Electric, 30+7.5kw | WEICHAI Diesel engine, 129kw | WEICHAI Diesel engine, 129kw |
| Max. Pumping capacity | 30m3/h | 30m3/h | 40m3/h | 40m3/h | 40m3/h | 40m3/h | 40m3/h | 40m3/h | 40m3/h |
| Mixing Mixer | JZM450 | JZM450 | JZM450 | JZM450 | JZM450 | JS500 | JS750 | JS500 | JS750 |
| Max. Mixing capacity | 18m3/h | 18m3/h | 18m3/h | 18m3/h | 18m3/h | 25m3/h | 35m3/h | 25m3/h | 35m3/h |
| Max. Aggregate diameter(mm) | 15/20mm | 15/20mm | 40mm | 40mm | 40mm | 40mm | 40mm | 40mm | 40mm |
| Pumping Distance (Vertical/Horizontal) | 80m/400m | 80m/400m | 100m/500m | 120m/600m | 120m/600m | 120m/600m | 120m/600m | 120m/600m | 120m/600m |

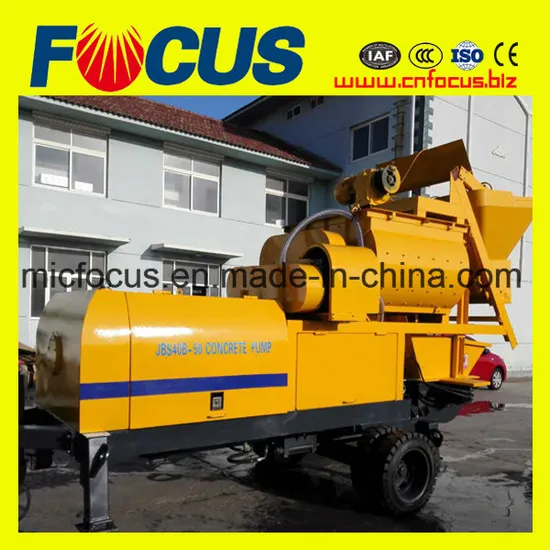

Photos of Concrete pump with JS concrete mixer:
